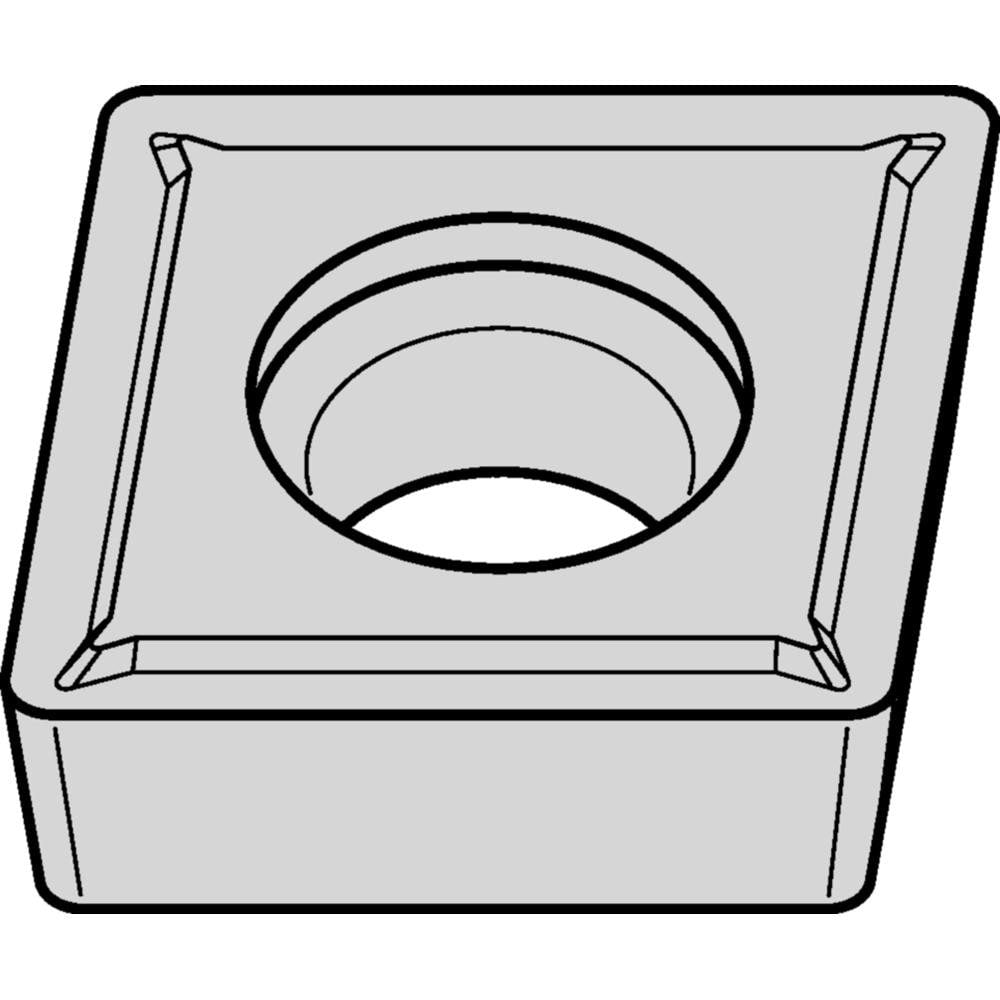

Brand: Widia / Part #: 4166327

Brand: Widia / Part #: 4166327


Item #: 19700186
Brand: Widia
Model #: 4166327

Product Specifications

Insert Style CCMT
Insert Shape Code C
Insert Size Code 2151
Insert Shape Diamond
Coating/Finish TiCN; TiN; Al2O3
Manufacturer Grade TN20P
Corner Radius (Decimal Inch) 0.0157
Insert Material Carbide
Hole Diameter (Decimal Inch) 0.1102
Maximum Depth of Cut (Decimal Inch) 0.1270
Inscribed Circle (Decimal Inch) 0.2500
Insert Holding Method Screw
Insert Hand Neutral
Insert Thickness (Decimal Inch) 0.0938
Clearance Code C
Tolerance Code M
Included Angle 80.00
Relief Angle 7.000
Series CCMT
Coating Process MTCVD
Rake Positive
Wiper Edge No
Insert Length (Decimal Inch) 0.2539
Number Of Cutting Edges 2
Secondary Workpiece Material Cast Iron; Steel
Secondary Workpiece Material Code P; K
Ansi Code CCMT21511P
Iso Code CCMT0602041P
Manufacturers Catalog Number CCMT21511P
Cutting Direction Neutral
Coating Classification Multi-Layered CVD
Chip Breaker 1P
Style CCMT
Width (Decimal Inch - 4 Decimals) 0.2500
Multi-Use Tool Yes
Full Radius No
Multi-Use Application External Turning; Internal Turning
$6.33
