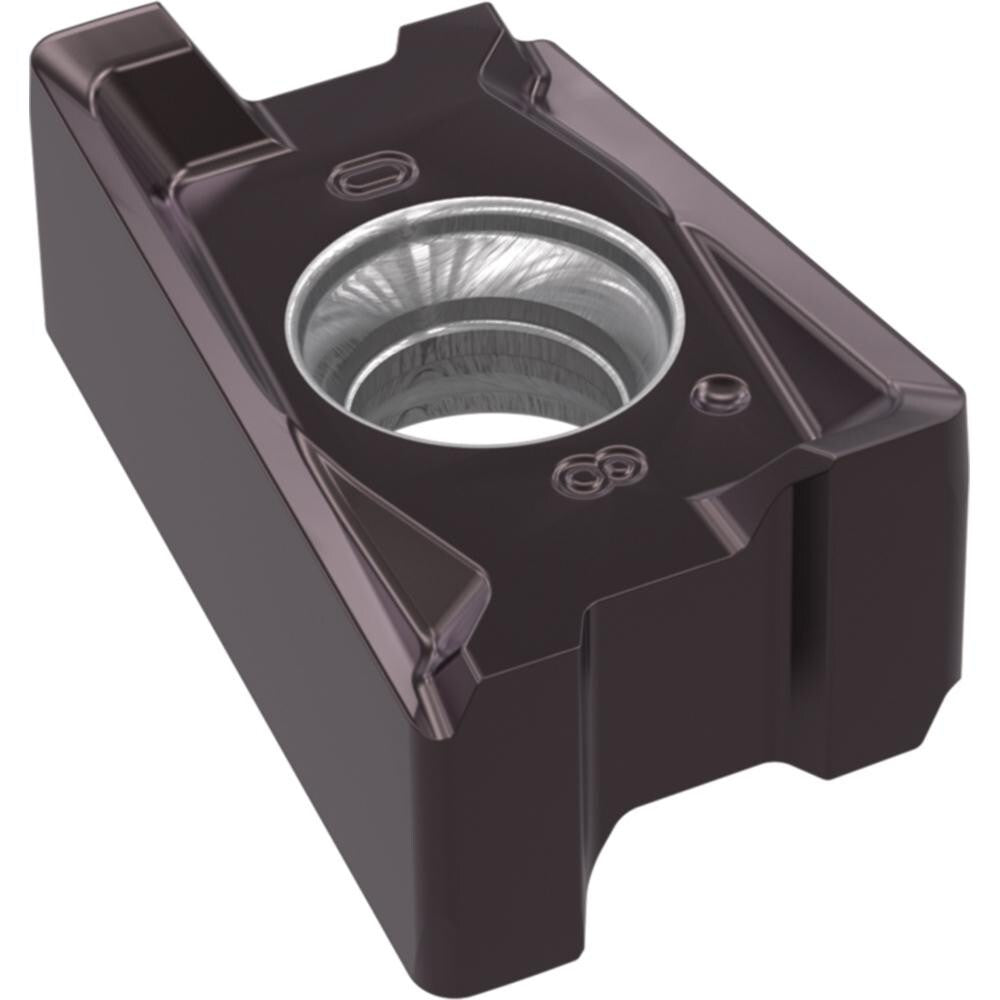

Brand: Widia / Part #: 5710529

Brand: Widia / Part #: 5710529


Item #: 16140469
Brand: Widia
Model #: 5710529

Product Specifications

Insert Style XNGU
Insert Size Code 15T6
Insert Size 15
Insert Material Carbide
Manufacturer Grade WU35PM
Inscribed Circle (Decimal Inch) 0.3940
Inscribed Circle (mm) 10.00
Corner Radius (Decimal Inch) 0.0314
Corner Radius (Inch) 1/32
Insert Hand Right Hand
Relief Angle 0.000
Series VSM490-15
Coating Process PVD
Hole Diameter (Decimal Inch) 0.1830
Maximum Depth of Cut (Decimal Inch) 0.6020
Number Of Cutting Edges 4
Insert Shape Rectangle
Rake Negative
Primary Workpiece Material Stainless Steel; Super-alloys & Titanium; Steel
Primary Workpiece Material Code P; S; M
Ansi Code XNGU1502SRMM
Iso Code XNGU15T608SRMM
Manufacturers Catalog Number XNGU1502SRMM
Cutter Series Compatibility VSM490 XN15
Chip Breaker MM
Cutting Direction Right Hand
Material Application High-Temperature Alloy; Stainless Steel; Steel
Shape Rectangle
Insert Holding Method Screw
Coating Classification PVD
Single or Double Sided Insert Double
Coating/Finish AlTiN
Included Angle Degree 90
Width (Decimal Inch - 4 Decimals) 0.3940
Width (Mm - 2 Decimals) 10.00
Thickness (Decimal Inch - 4 Decimals) 0.2710
Multi-Use Tool Yes
Length (Decimal Inch - 4 Decimals) 0.6380
$22.68
