Brand: Widia / Part #: 6128329

Brand: Widia / Part #: 6128329


Item #: 93325876
Brand: Widia
Model #: 6128329

Product Specifications

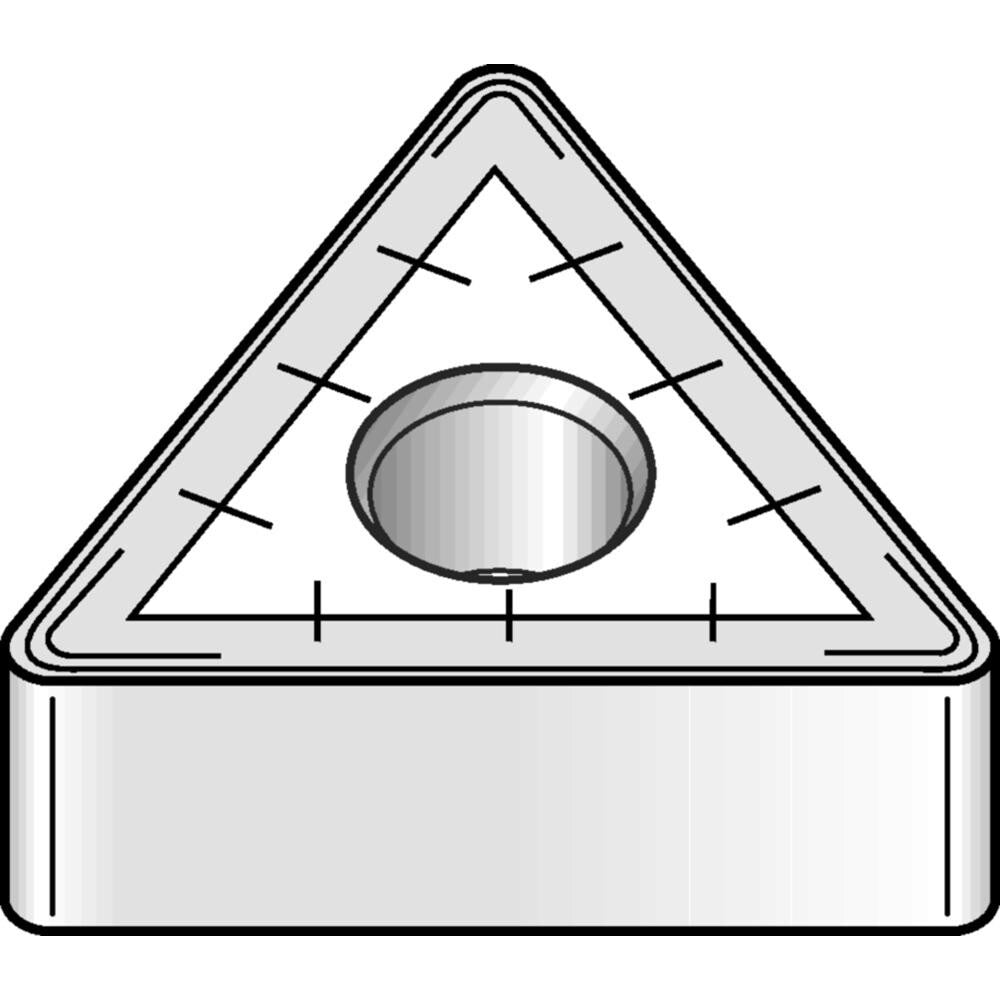

Insert Style TNMM
Insert Shape Code T
Insert Size Code 546
Insert Shape Triangle
Coating/Finish TiN
Manufacturer Grade W00342
Corner Radius (Decimal Inch) 0.0945
Insert Material Carbide
Hole Diameter (Decimal Inch) 0.2500
Maximum Depth of Cut (Decimal Inch) 0.5413
Inscribed Circle (Decimal Inch) 0.6250
Insert Holding Method Clamp
Insert Hand Neutral
Insert Thickness (Decimal Inch) 0.2500
Clearance Code N
Tolerance Code M
Included Angle 60.00
Relief Angle 0.000
Series TNMM
Coating Process CVD
Rake Negative
Wiper Edge No
Insert Length (Decimal Inch) 1.0825
Number Of Cutting Edges 3
Primary Workpiece Material Steel
Primary Workpiece Material Code P
Secondary Workpiece Material Cast Iron
Secondary Workpiece Material Code K
Ansi Code TNMM5468
Iso Code TNMM2706248
Manufacturers Catalog Number TNMM5468
Cutting Direction Neutral
Coating Classification CVD
Chip Breaker 8
Style TNMM
Width (Decimal Inch - 4 Decimals) 0.6250
Multi-Use Tool Yes
Full Radius No
Multi-Use Application External Turning; Internal Turning
