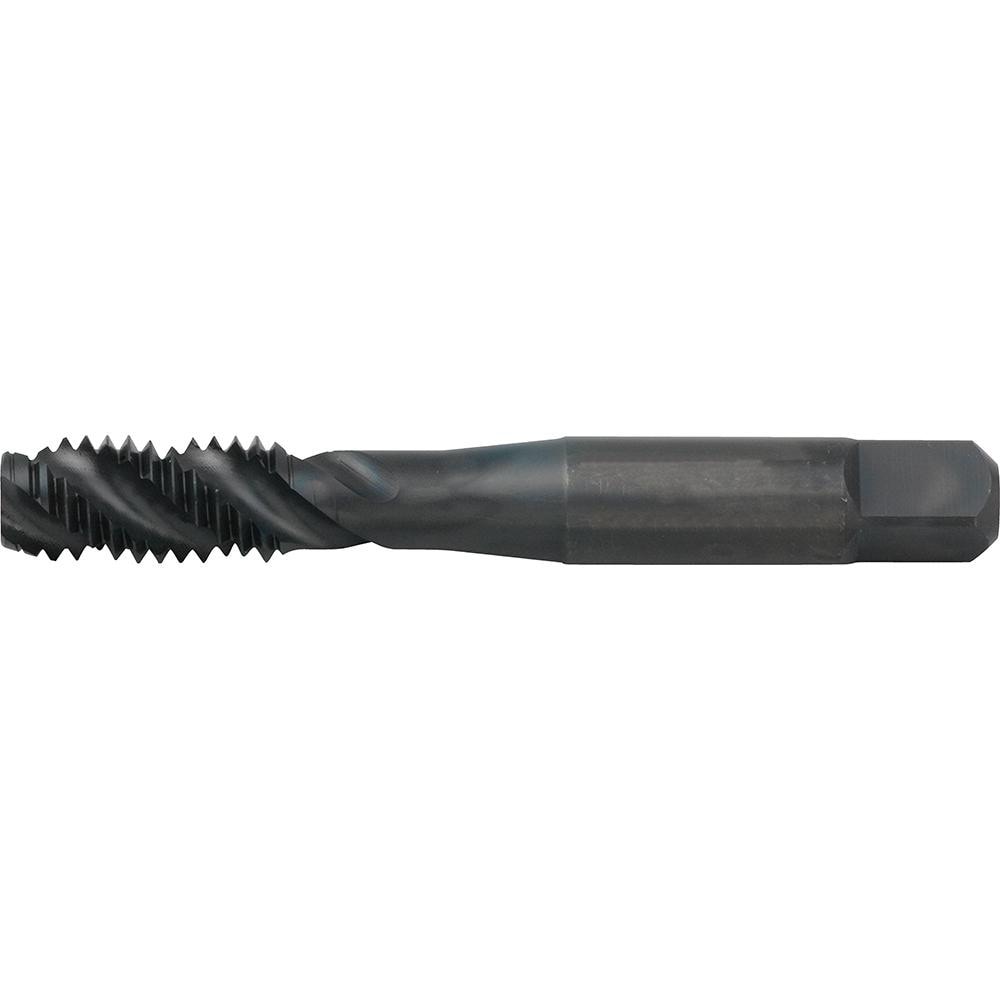

Brand: Widia / Part #: 5364702

Brand: Widia / Part #: 5364702


Item #: 97435333
Brand: Widia
Model #: 5364702

Product Specifications

Thread Size (Inch) 3/4-10
Chamfer Modified Bottoming
Thread Limit H3
Class Of Fit 3B
Number Of Flutes 4
Material High Speed Steel
Threads per Inch 10
Thread Direction Right Hand
Flute Direction Right Hand
Coating/Finish Uncoated
Coolant Through No
Thread Length (Decimal Inch) 1.2200
Overall Length (Decimal Inch) 4.2500
Thread Depth (Decimal Inch) 2.0800
Thread Pitch (Decimal Inch) 0.1000
Thread Standard UNC
Material Grade WU40EG
Shank Diameter (Decimal Inch) 0.5900
Square Size (Decimal Inch) 0.4390
Material Application Non-Ferrous Metal; Stainless Steel; Steel
Series VTSFT
$109.89
