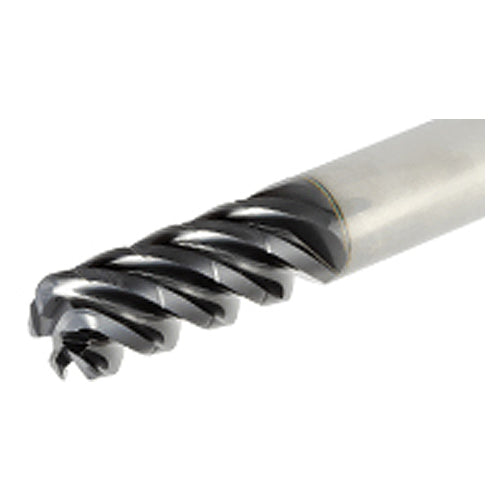

EFP-E4CF 20-40C20R3.4M104 IC903
Item #: EH5682658
Brand: Iscar
Model #: 5682658
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 20 mm |
| Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Shouldering | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 20 mm |
| Corner Radius (RE) | 3.4 mm |
| Depth of Cut Maximum (APMX) | 1 mm |
| Ramping Angle Maximum (RMPX) | 5 Degrees |
| Overall Length (OAL) | 104 mm |
| Grade | IC903 |
| Cutting Edge Material | Carbide |
| Tool Type | Solid carbide non center cutting endmills 90° |
| Coating | TiAlN |
| Maximum Feed per Tooth (fz(max)) | 0.7 mm/tooth |
| Flute Count (NOF) | 4 |
| Minimum Feed per Tooth (fz(min)) | 0.05 mm/tooth |
| Flute Helix Angle (FHA) | 38 Degrees |
| Body Material | Carbide |
| Shank Type | Round |
| Style | Solid Carbide Non Center Cutting Endmills 90° |
| End Shape | Corner Radius |
| Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Connection Code Machine Side (CCMS) | Cylindrical |
