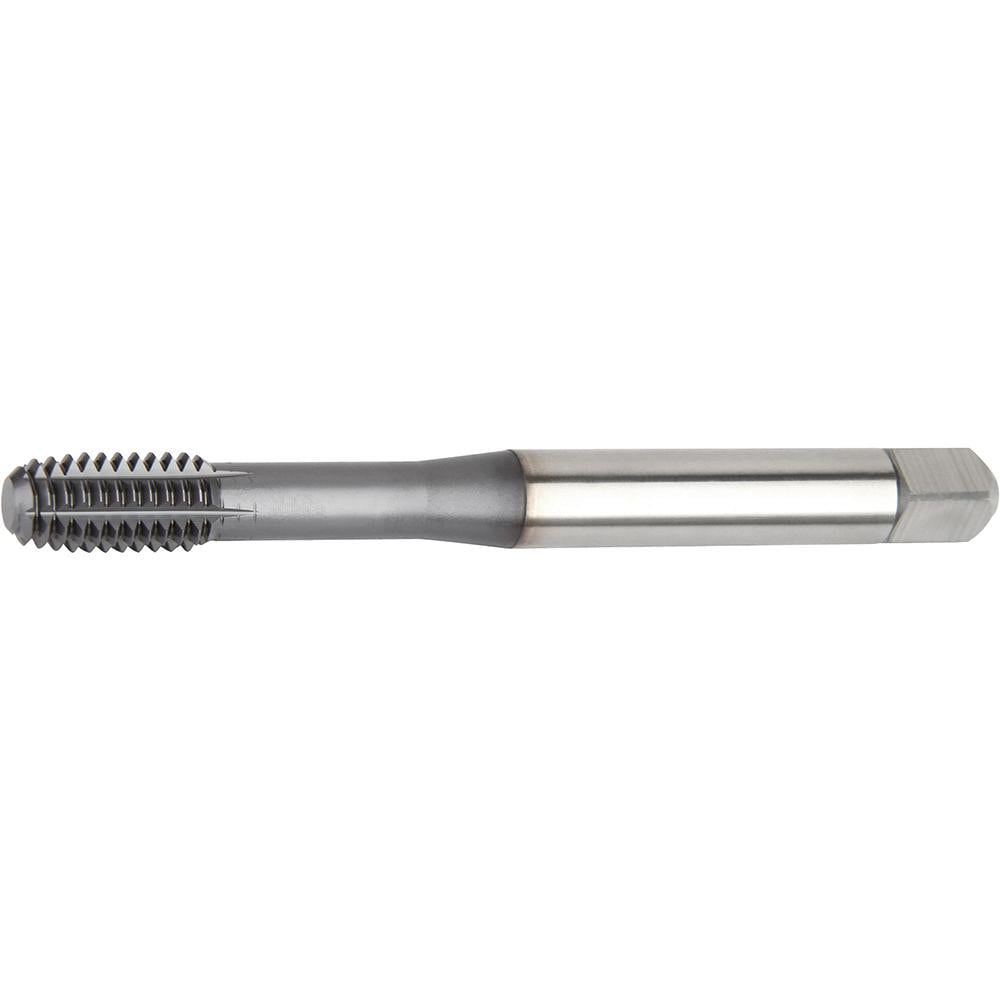

Brand: Widia / Part #: 5945019
Item #: 98988710
Brand: Widia
Model #: 5945019
Product Specifications
| Thread Size (mm) | M8x1.25 |
| Overall Length (mm) | 90.0000 |
| Chamfer | Semi-Bottoming |
| Coating/Finish | TiCN |
| Thread Limit | D9 |
| Thread Pitch (mm) | 1.25 |
| Thread Standard | Metric |
| Thread Direction | Right Hand |
| Material | High Speed Steel |
| Thread Length (mm) | 14.00 |
| Thread Depth (mm) | 35.00 |
| Thread Depth | 35.0000 |
| Shank Diameter (mm) | 8.0800 |
| Neck Length | 21.00 |
| Square Length (mm) | 9.70 |
| Material Application | Stainless Steel |
| Application | Metal |
| Series | GT24 |
| Tap Type | Blind |
| Tapping Depth (mm) | 35.00 |
| Shank Length (mm) | 46.800 |
| Square Size (mm) | 5.99 |
| Threads per Inch | 20 |
| Class Of Fit | 6H |
| Coolant Through | No |
