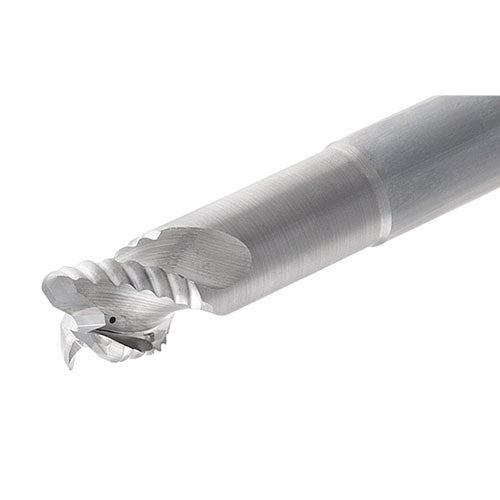

ECR-B325-25/74C25R40A130C IC08
Item #: EH562616699
Brand: Iscar
Model #: 2616699
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 25 mm |
| Applicable Material | | Non Ferrous Metals | |
| Connection Diameter Machine Side (DCONMS) | 25 mm |
| Application | | Counter Boring | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | |
| Depth of Cut Maximum (APMX) | 25 mm |
| Corner Radius (RE) | 4 mm |
| Overall Length (OAL) | 130 mm |
| Ramping Angle Maximum (RMPX) | 20 Degrees |
| Cutting Edge Material | Carbide |
| Grade | IC08 |
| Coating | Uncoated |
| Tool Type | Solid carbide center cutting endmills 90° |
| Flute Count (NOF) | 3 |
| Maximum Feed per Tooth (fz(max)) | 0.25 mm/tooth |
| Flute Helix Angle (FHA) | 45 Degrees |
| Minimum Feed per Tooth (fz(min)) | 0.1 mm/tooth |
| Shank Type | Round |
| Body Material | Carbide |
| End Shape | Corner Radius |
| Measurement Type | Metric |
| Usable Length (LU) | 74 mm |
| Connection Code Machine Side (CCMS) | Cylindrical |
