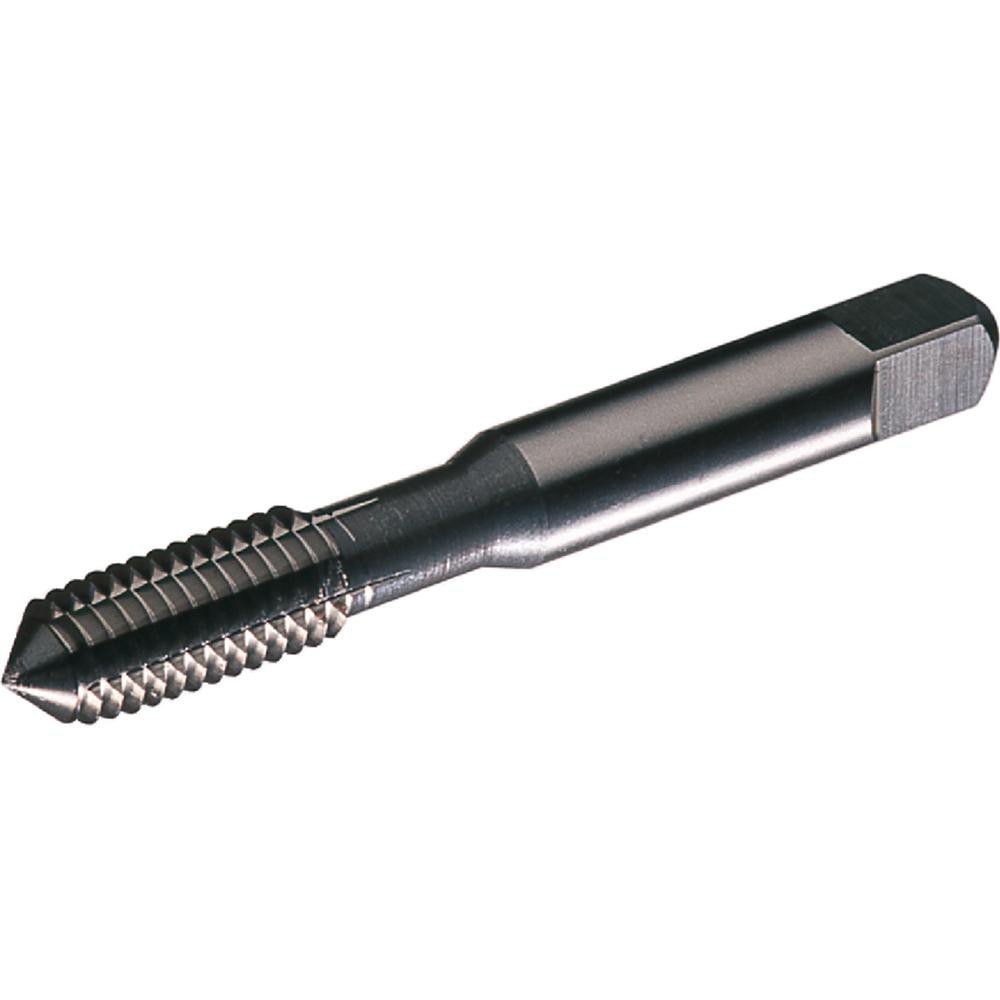

Brand: Widia / Part #: 2747876
Item #: 98983513
Brand: Widia
Model #: 2747876
Product Specifications
| Thread Size (Inch) | 5/8-11 |
| Overall Length (Decimal Inch) | 3.8100 |
| Chamfer | Plug |
| Coating/Finish | Uncoated |
| Thread Limit | H7 |
| Thread Pitch (Decimal Inch) | 0.0909 |
| Thread Standard | UNC |
| Thread Direction | Right Hand |
| Material | High Speed Steel |
| Thread Length (Decimal Inch) | 1.0940 |
| Thread Depth | 1.0940 |
| Thread Depth (Decimal Inch) | 1.0940 |
| Shank Diameter (Decimal Inch) | 0.4800 |
| Material Application | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Application | Metal |
| Series | 5500 |
| Tap Type | Through |
| Tapping Depth (Decimal Inch) | 1.0940 |
| Shank Length (Decimal Inch) | 2.7160 |
| Threads per Inch | 11 |
| Class Of Fit | 2B |
| Coolant Through | No |
