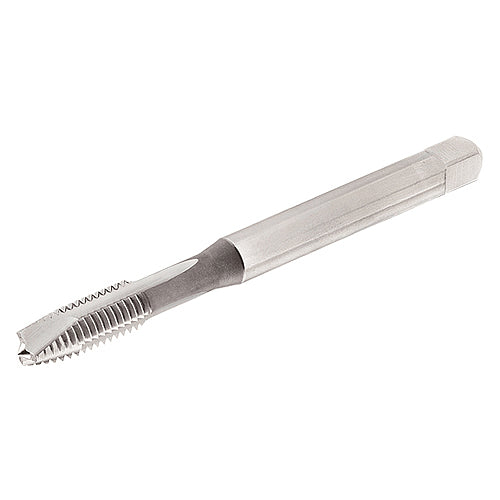

TPG UNF-9/16-18-M HEST
Item #: EH4446110
Brand: Iscar
Model #: 4446110
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 9/16″ |
| Standard | DIN 374 |
| Thread Pitch (TP) | 1.389 mm |
| Tool Type | Machine Through Hole Taps |
| Threads per Inch (TPI) | 18 Threads/" |
| Coating | Steam tempered |
| Thread Standard | THFT | |
| Style | DIN 374 |
| Overall Length (OAL) | 3.937″ |
| Measurement Type | Inch |
| Thread Cutting Part Length (THL) | 0.866″ |
| Grade | HEST |
| Connection Diameter Machine Side (DCONMS) | 0.433″ |
| Thread Size | 9/16 - 18 |
| Flute Count (NOF) | 3 |
| Body Material | Carbide |
| Application | | Taps for Deep Through Hole | Taps for Short Through Hole | |
| Thread Form Type (THFT) | UN60 |
| Cutting Edge Material | HSS |
