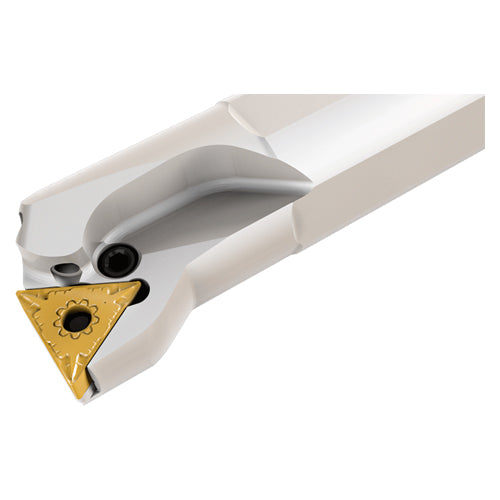

A-PTFNL 10-3G
Item #: EH3605934
Brand: Iscar
Model #: 3605934
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 0.63″ |
| Application | | Int. 60° Triangle 91° Approach | |
| Overall Length (OAL) | 6″ |
| Rake Angle Axial (GAMP) | -12 Degrees |
| Reduced Body Diameter Length (LDRED) | 1.1″ |
| Rake Angle Radial (GAMF) | -16 Degrees |
| Shank Height (H) | 0.6″ |
| Tool Type | Internal Indexble -Turn Tool |
| Functional Width (WF) | 0.4″ |
| Body Material | Steel |
| Master Insert Identification (MIID) | TNMG 331-F3P |
| Cutting Position | Internal |
| Minimum Bore Diameter (DMIN) | 0.78″ |
| Measurement Type | Inch |
| Cutting Direction (HAND) | Left Hand |
