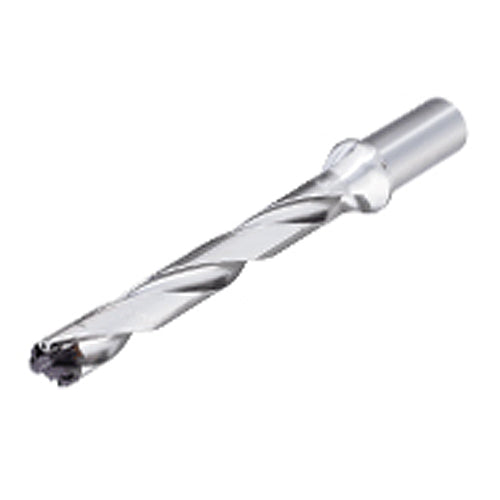

DCN 0630-630-075R-10D
Item #: EH323405279
Brand: Iscar
Model #: 3405279
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 0.63″ |
| Protruding Length (LPR) | 7.29″ |
| Usable Length (LU) | 6.415″ |
| Overall Length (OAL) | 9.26″ |
| Length Group | 10D |
| Coolant Supply Property (CSP) | Through Hole |
| Application | | Drilling | |
| Measurement Type | Inch |
| Tool Type | Indexable Insert Drills |
| Master Insert Identification (MIID) | ICP 160 |
| Connection Diameter Machine Side (DCONMS) | 3/4″ |
| Point Length (PL) | 0.115″ |
| Insert Seat Size Code (SSC) | 16.0 |
| Body Material | Steel |
| Cutting Diameter Minimum (DCN) | 0.63″ |
| Flange Diameter (DF) | 0.98″ |
| Cutting Diameter Maximum (DCX) | 0.665″ |
| Decimal Equivalent | 0.63″ |
