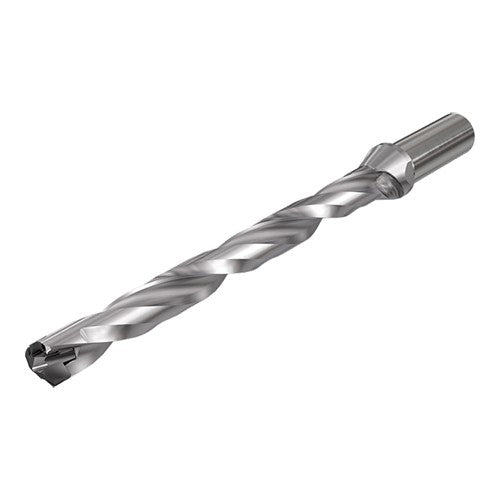

DCN 190-190-25R-10D
Item #: EH323388000
Brand: Iscar
Model #: 3388000
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 19 mm |
| Protruding Length (LPR) | 220 mm |
| Usable Length (LU) | 192.9 mm |
| Overall Length (OAL) | 276 mm |
| Application | | Drilling | |
| Coolant Supply Property (CSP) | Through Hole |
| Tool Type | Indexable Insert Drills |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 25 mm |
| Master Insert Identification (MIID) | ICP 190 |
| Insert Seat Size Code (SSC) | 19.0 |
| Point Length (PL) | 2.88 mm |
| Cutting Diameter Minimum (DCN) | 19 mm |
| Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 19.9 mm |
| Flange Diameter (DF) | 32 mm |
