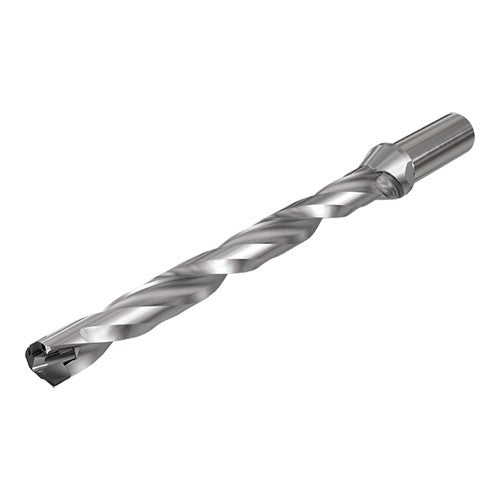

DCN 160-160-20R-10D
Item #: EH323387999
Brand: Iscar
Model #: 3387999
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 16 mm |
| Protruding Length (LPR) | 185.3 mm |
| Usable Length (LU) | 162.4 mm |
| Overall Length (OAL) | 235.3 mm |
| Application | | Drilling | |
| Coolant Supply Property (CSP) | Through Hole |
| Tool Type | Indexable Insert Drills |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 20 mm |
| Master Insert Identification (MIID) | ICP 160 |
| Insert Seat Size Code (SSC) | 16.0 |
| Point Length (PL) | 2.42 mm |
| Cutting Diameter Minimum (DCN) | 16 mm |
| Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 16.9 mm |
| Flange Diameter (DF) | 25 mm |
