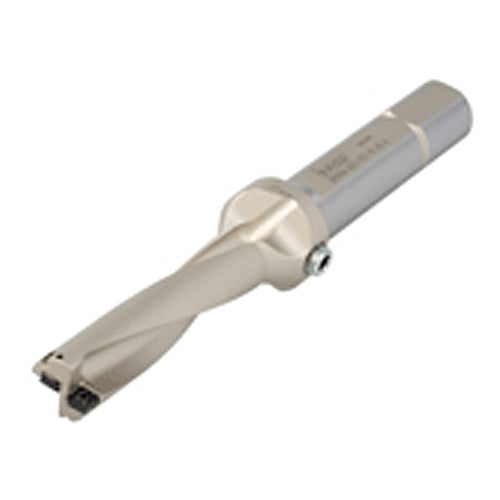

DR1250-6250-125-09-5D-N
Item #: EH323371002
Brand: Iscar
Model #: 3371002
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1-1/4″ |
| Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 6-1/4″ |
| Cutting Diameter Maximum (DCX) | 1.266″ |
| Application | | Drilling | |
| Flange Diameter (DF) | 1.65″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ |
| Measurement Type | Inch |
| Tool Type | indexable head drills |
| Length Group | 5D |
| Protruding Length (LPR) | 7.55″ |
| Master Insert Identification (MIID) | SOMT 09 |
| Shank Length (LS) | 3″ |
| Body Material | Steel |
| Functional Length (LF) | 7.55″ |
| Decimal Equivalent | 1.25″ |
| Overall Length (OAL) | 10.55″ |
