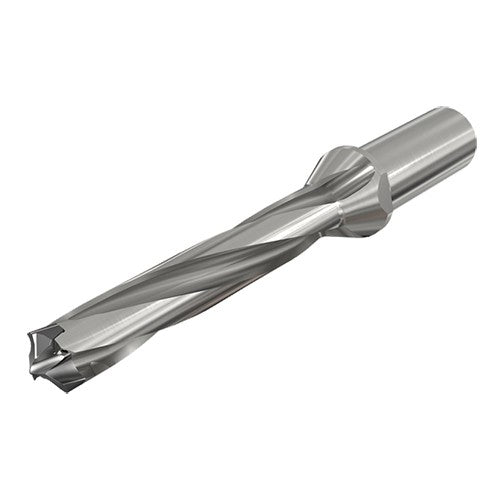

D3N 240-120-32R-5D
Item #: EH323363159
Brand: Iscar
Model #: 3363159
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 24 mm |
| Overall Length (OAL) | 229.54 mm |
| Usable Length (LU) | 125.21 mm |
| Shank Length (LS) | 60 mm |
| Length Group | 5D |
| Coolant Supply Property (CSP) | Through Hole |
| Application | | Drilling | |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 32 mm |
| Master Insert Identification (MIID) | H3P 240 |
| Insert Seat Size Code (SSC) | 24 |
| Point Length (PL) | 5.21 mm |
| Cutting Diameter Minimum (DCN) | 24 mm |
| Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 24.9 mm |
| Flange Diameter (DF) | 42 mm |
| Protruding Length (LPR) | 169.54 mm |
| Connection Code Machine Side (CCMS) | Cylindrical |
