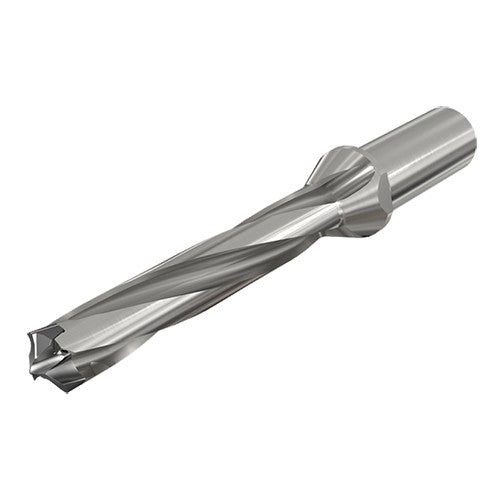

D3N 220-110-25R-5D
Item #: EH323363157
Brand: Iscar
Model #: 3363157
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 22 mm |
| Overall Length (OAL) | 211.62 mm |
| Usable Length (LU) | 114.69 mm |
| Shank Length (LS) | 56 mm |
| Length Group | 5D |
| Measurement Type | Metric |
| Application | | Drilling | |
| Master Insert Identification (MIID) | H3P 220 |
| Connection Diameter Machine Side (DCONMS) | 25 mm |
| Point Length (PL) | 4.69 mm |
| Insert Seat Size Code (SSC) | 22 |
| Body Material | Steel |
| Cutting Diameter Minimum (DCN) | 22 mm |
| Flange Diameter (DF) | 32 mm |
| Cutting Diameter Maximum (DCX) | 22.9 mm |
| Connection Code Machine Side (CCMS) | Cylindrical |
| Protruding Length (LPR) | 155.62 mm |
