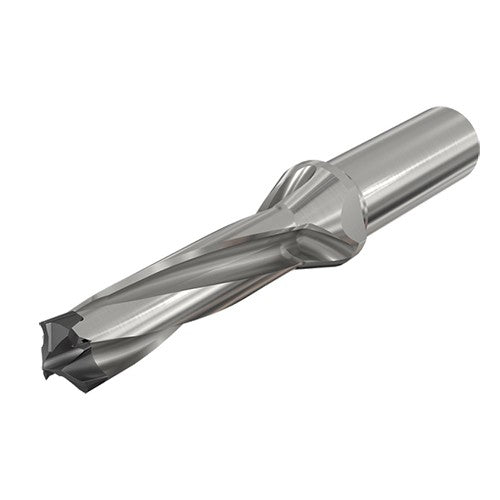

D3N 210-063-25R-3D
Item #: EH323363133
Brand: Iscar
Model #: 3363133
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 21 mm |
| Protruding Length (LPR) | 106.3 mm |
| Usable Length (LU) | 67.55 mm |
| Overall Length (OAL) | 162.3 mm |
| Length Group | 3D |
| Shank Length (LS) | 56 mm |
| Application | | Drilling | |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 25 mm |
| Master Insert Identification (MIID) | H3P 210 |
| Insert Seat Size Code (SSC) | 21 |
| Point Length (PL) | 4.55 mm |
| Cutting Diameter Minimum (DCN) | 21 mm |
| Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 21.9 mm |
| Flange Diameter (DF) | 32 mm |
