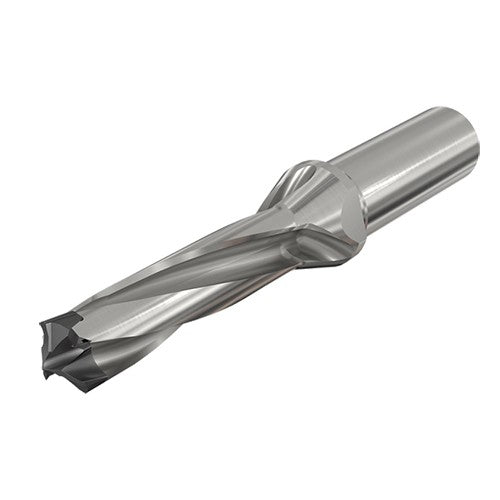

D3N 140-042-16R-3D
Item #: EH323363114
Brand: Iscar
Model #: 3363114
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 14 mm |
| Protruding Length (LPR) | 71.08 mm |
| Usable Length (LU) | 45.1 mm |
| Overall Length (OAL) | 119.08 mm |
| Length Group | 3D |
| Shank Length (LS) | 48 mm |
| Application | | Drilling | |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 16 mm |
| Master Insert Identification (MIID) | H3P 140 |
| Insert Seat Size Code (SSC) | 14 |
| Point Length (PL) | 3.1 mm |
| Cutting Diameter Minimum (DCN) | 14 mm |
| Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 14.4 mm |
| Flange Diameter (DF) | 20 mm |
