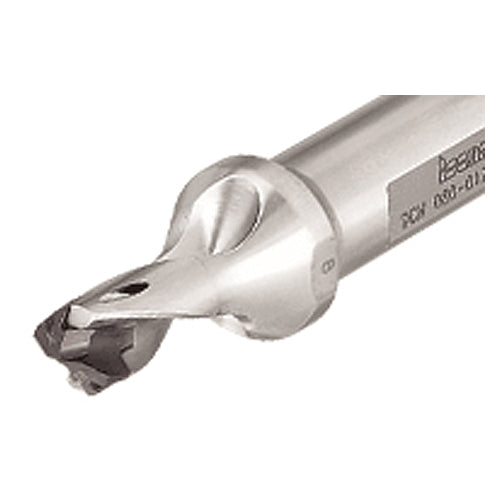

DCN 270-041-32A-1.5D
Item #: EH3203647
Brand: Iscar
Model #: 3203647
| Product Specifications | |
|---|---|
| Usable Length (LU) | 44.6 mm |
| Functional Length (LF) | 78.19 mm |
| Length Group | 2D |
| Overall Length (OAL) | 151.1 mm |
| Shank Type | Weldon |
| Shank Length (LS) | 60 mm |
| Application | | Drilling | |
| Coolant Supply Property (CSP) | Through Hole |
| Tool Type | Indexable Insert Drills |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 32 mm |
| Master Insert Identification (MIID) | ICP 270 |
| Insert Seat Size Code (SSC) | 27.0 |
| Point Length (PL) | 4.1 mm |
| Cutting Diameter Minimum (DCN) | 27 mm |
| Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 27.9 mm |
| Flange Diameter (DF) | 42 mm |
| Protruding Length (LPR) | 83.1 mm |
| Body Diameter Reduced (BDRED) | 42 mm |
