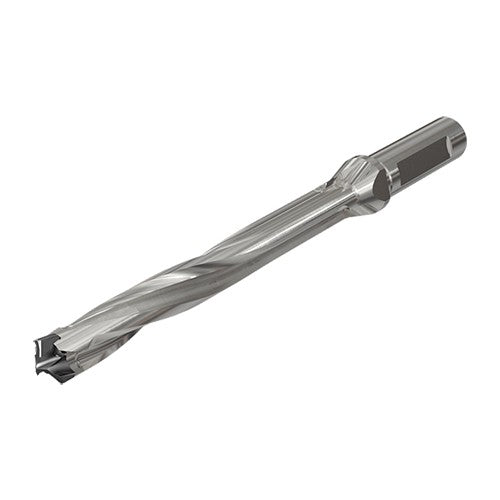

D3N 0669-535-075A-8D
Item #: EH233392293
Brand: Iscar
Model #: 3392293
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 0.669″ |
| Overall Length (OAL) | 8.709″ |
| Usable Length (LU) | 5.497″ |
| Coolant Supply Property (CSP) | Through Hole |
| Application | | Drilling | |
| Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 3/4″ |
| Master Insert Identification (MIID) | H3P 170-IQ |
| Insert Seat Size Code (SSC) | 17 |
| Point Length (PL) | 0.139″ |
| Cutting Diameter Minimum (DCN) | 0.669″ |
| Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 0.705″ |
| Flange Diameter (DF) | 0.984″ |
| Protruding Length (LPR) | 6.746″ |
| Decimal Equivalent | 0.669″ |
