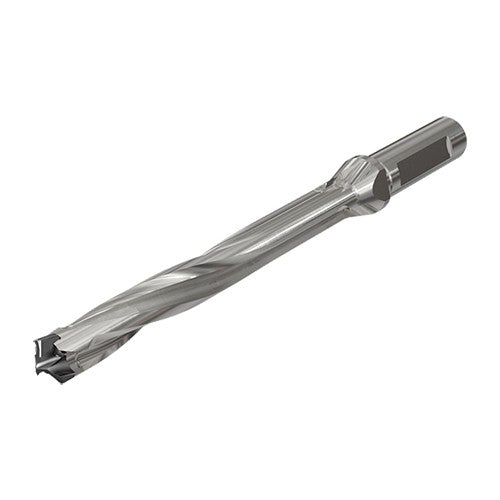

D3N 0591-472-075A-8D
Item #: EH233392289
Brand: Iscar
Model #: 3392289
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 0.591″ |
| Overall Length (OAL) | 7.92″ |
| Usable Length (LU) | 4.865″ |
| Coolant Supply Property (CSP) | Through Hole |
| Application | | Drilling | |
| Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 3/4″ |
| Master Insert Identification (MIID) | H3P 150-IQ |
| Insert Seat Size Code (SSC) | 15 |
| Point Length (PL) | 0.137″ |
| Cutting Diameter Minimum (DCN) | 0.591″ |
| Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 0.626″ |
| Flange Diameter (DF) | 0.984″ |
| Protruding Length (LPR) | 5.956″ |
| Decimal Equivalent | 0.591″ |
