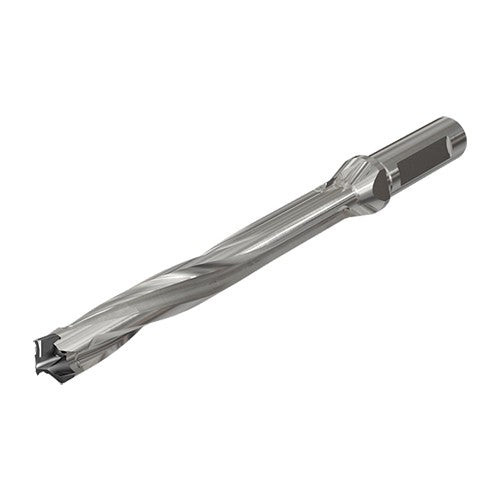

D3N 170-136-20A-8D
Item #: EH233391765
Brand: Iscar
Model #: 3391765
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 17 mm |
| Overall Length (OAL) | 221.3 mm |
| Usable Length (LU) | 139.52 mm |
| Coolant Supply Property (CSP) | Through Hole |
| Application | | Drilling | |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 20 mm |
| Master Insert Identification (MIID) | H3P 170-IQ |
| Insert Seat Size Code (SSC) | 17 |
| Point Length (PL) | 3.52 mm |
| Cutting Diameter Minimum (DCN) | 17 mm |
| Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 17.9 mm |
| Flange Diameter (DF) | 25 mm |
| Protruding Length (LPR) | 171.22 mm |
