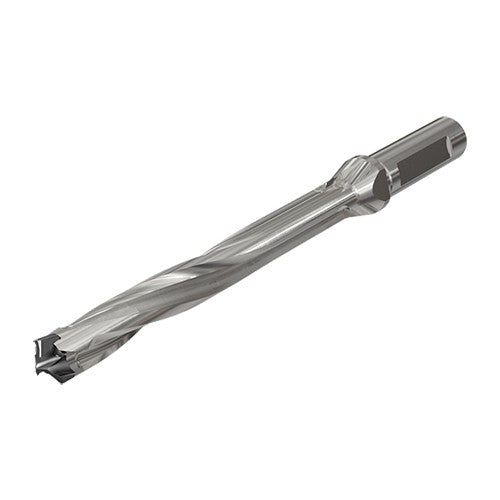

D3N 200-160-25A-8D
Item #: EH233391703
Brand: Iscar
Model #: 3391703
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 20 mm |
| Overall Length (OAL) | 257.2 mm |
| Usable Length (LU) | 164.32 mm |
| Coolant Supply Property (CSP) | Through Hole |
| Application | | Drilling | |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 25 mm |
| Master Insert Identification (MIID) | H3P 200-IQ |
| Insert Seat Size Code (SSC) | 20 |
| Point Length (PL) | 4.32 mm |
| Cutting Diameter Minimum (DCN) | 20 mm |
| Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 20.9 mm |
| Flange Diameter (DF) | 32 mm |
| Protruding Length (LPR) | 201.24 mm |
