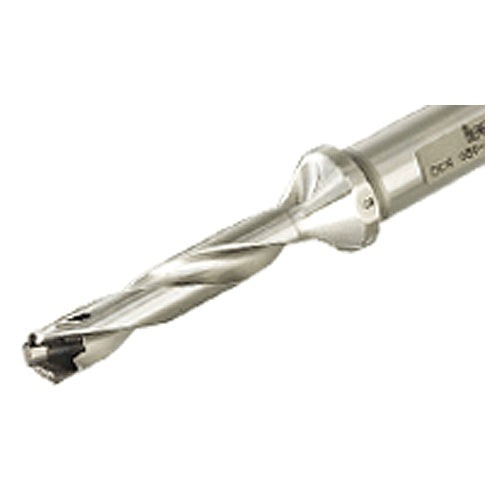

DCN 320-096-40A-3D
Item #: EH233260094
Brand: Iscar
Model #: 3260094
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 32 mm |
| Functional Length (LF) | 140.68 mm |
| Usable Length (LU) | 100.86 mm |
| Overall Length (OAL) | 206.5 mm |
| Length Group | 3D |
| Shank Length (LS) | 68 mm |
| Shank Type | Weldon |
| Coolant Supply Property (CSP) | Through Hole |
| Application | | Drilling | |
| Measurement Type | Metric |
| Tool Type | Indexable Insert Drills |
| Master Insert Identification (MIID) | ICP 320 |
| Connection Diameter Machine Side (DCONMS) | 40 mm |
| Point Length (PL) | 4.86 mm |
| Insert Seat Size Code (SSC) | 32.0 |
| Body Material | Steel |
| Cutting Diameter Minimum (DCN) | 32 mm |
| Flange Diameter (DF) | 50 mm |
| Cutting Diameter Maximum (DCX) | 32.9 mm |
| Body Diameter Reduced (BDRED) | 50 mm |
| Protruding Length (LPR) | 146.5 mm |
