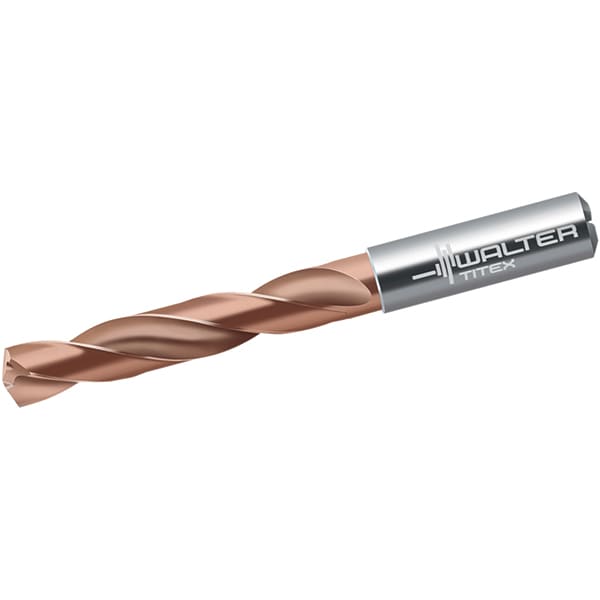

Brand: Walter-Titex / Part #: 5924802
Item #: 93249126
Brand: Walter-Titex
Model #: 5924802
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.2188 |
| Drill Bit Size (Inch) | 7/32 |
| Drill Bit Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | AlCrN |
| Drill Point Angle (Degrees) | 140 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | X-treme |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Overall Length (mm) | 82.00 |
| Overall Length (Decimal Inch) | 3.2284 |
| Flute Length (mm) | 44.00 |
| Flute Length (Decimal Inch) | 1.7323 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 6.00 |
| Maximum Drilling Depth (Decimal Inch) | 1.3780 |
| Maximum Drilling Depth (mm) | 35.00 |
| Shank Length (mm) | 36.00 |
| Shank Length (Decimal Inch) | 1.4173 |
| Drill Bit Diameter Tolerance | m7 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Drill Bit Size Range (Decimal Inch) | 0.2000 - 0.2500 |
| Material Grade | K30F |
| Specification Designation | DIN |
