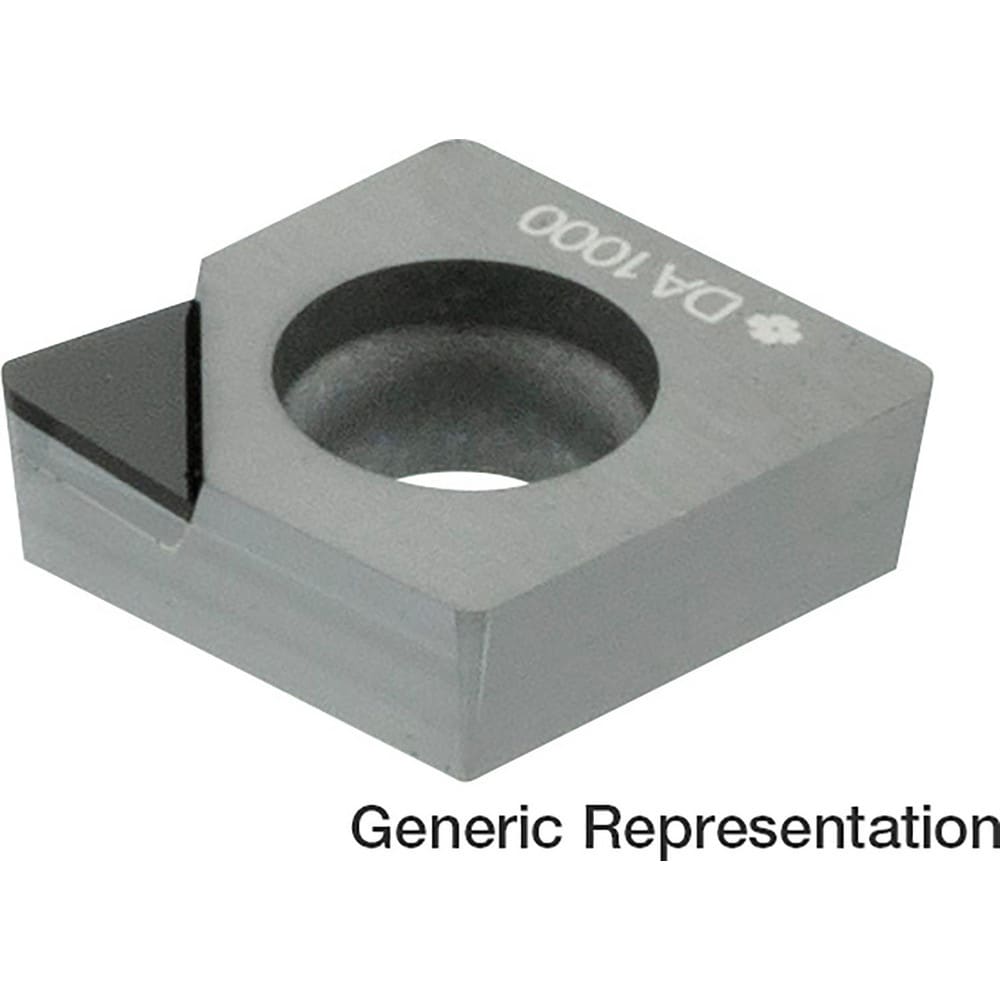

Brand: Sumitomo / Part #: 16HQ731
Item #: 91012351
Brand: Sumitomo
Model #: 16HQ731
Product Specifications
| Insert Style | CPMX |
| Insert Shape Code | C |
| Insert Size Code | 2.51.52 |
| Insert Shape | Diamond |
| Coating/Finish | Uncoated |
| Manufacturer Grade | DA1000 |
| Corner Radius (mm) | 0.80 |
| Insert Material | Polycrystalline Cubic Boron Nitride (PCBN) |
| Hole Diameter (Mm) ( - 0 Decimals) | 3.4000 |
| Maximum Depth of Cut (mm) | 0.50 |
| Inscribed Circle (mm) | 7.94 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness | 2.38 |
| Clearance Code | P |
| Tolerance Code | M |
| Relief Angle | 11.000 |
| Series | DA1000 |
| Manufacturers Catalog Number | CPMX2.51.52-DA1000 |
| Cutting Direction | Neutral |
| Chip Breaker | None |
| Width (Mm - 2 Decimals) | 8.00 |
