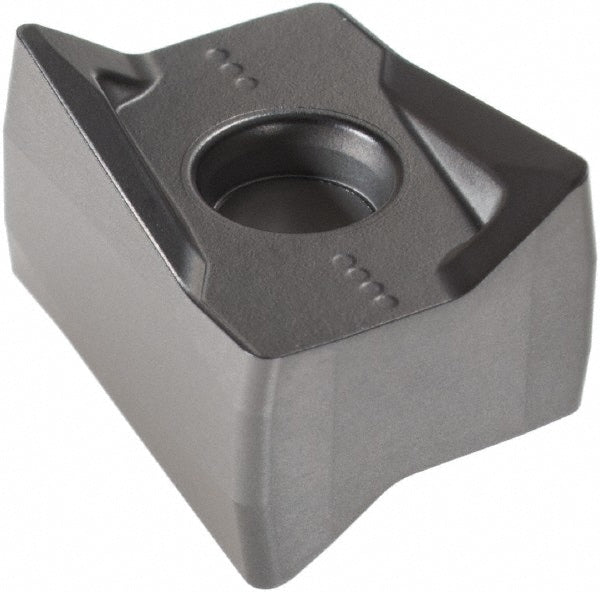

Brand: Walter / Part #: 6068881
Item #: 45462546
Brand: Walter
Model #: 6068881
Product Specifications
| Insert Style | LNGX |
| Insert Size Code | 130708R |
| Insert Size | 130708 |
| Insert Material | Solid Carbide |
| Material Grade | P25; K25 |
| Manufacturer Grade | WKP25S |
| Thickness Range (Decimal Inch) | 0.2500 to 0.3500 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Length Range (Decimal Inch) | 0.5000 to 0.6000 |
| Insert Hand | Right Hand |
| Relief Angle | 0.00 |
| Series | LNGX |
| Coating Process | CVD |
| Number Of Cutting Edges | 4 |
| Insert Shape | Diamond |
| Rake | Negative |
| Primary Workpiece Material | Cast Iron; Steel |
| Primary Workpiece Material Code | P; K |
| Ansi Code | LNGX130708R-L55 WKP25S |
| Iso Code | LNGX130708R-L55 WKP25S |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | LNGX130708R-L55 |
| Chip Breaker | L55 |
| Shape | Rectangle |
| Coating/Finish | Coated |
| Width (Decimal Inch - 4 Decimals) | 0.4331 |
| Thickness (Decimal Inch - 4 Decimals) | 0.3047 |
| Length (Decimal Inch - 4 Decimals) | 0.5354 |
