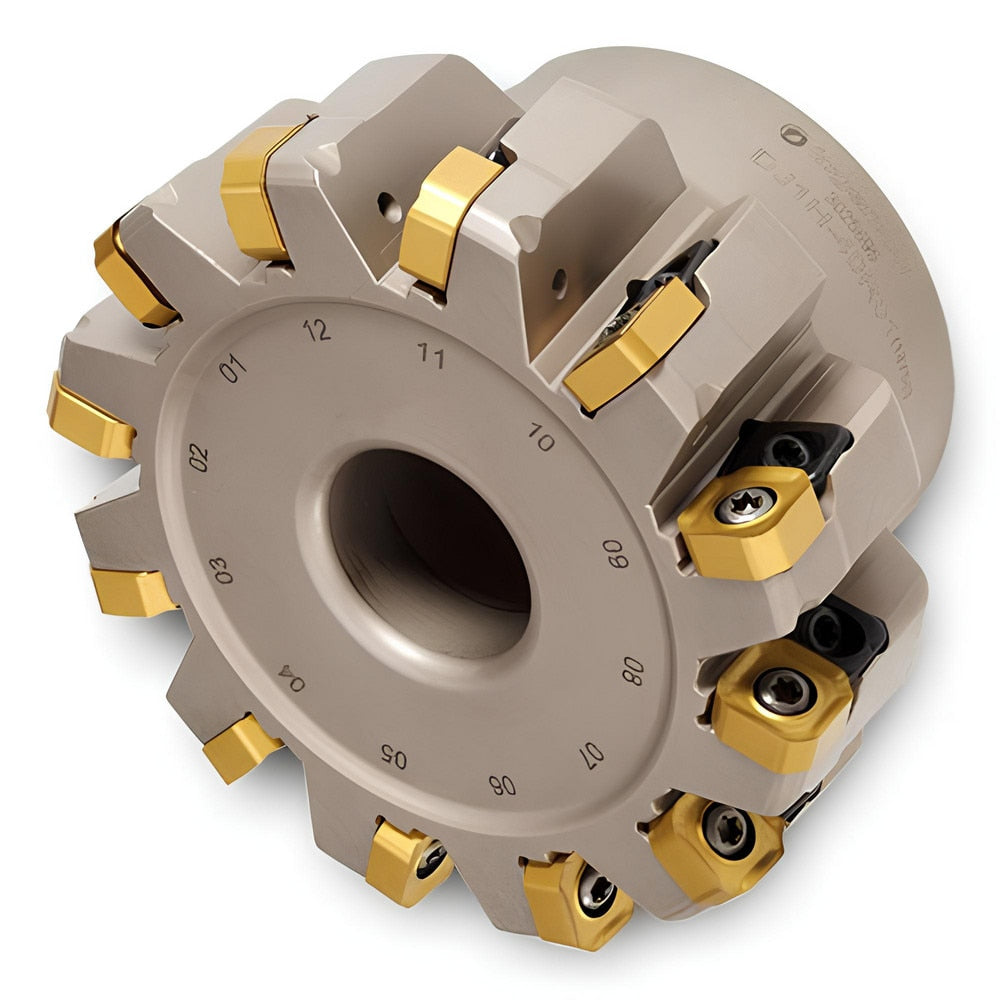

Brand: Ingersoll Cutting Tools / Part #: 3029784

Brand: Ingersoll Cutting Tools / Part #: 3029784


Item #: 96440037
Brand: Ingersoll Cutting Tools
Model #: 3029784

Product Specifications

Minimum Cutting Diameter (Decimal Inch) 3.0000
Minimum Cutting Diameter (Inch) 3
Minimum Cutting Diameter (mm) 76.20
Maximum Cutting Diameter (Inch) 3
Maximum Cutting Diameter (Decimal Inch) 3.0000
Maximum Depth of Cut (Decimal Inch) 0.0400
Arbor Hole Diameter (Inch) 1
Arbor Hole Diameter (Decimal Inch) 1.0000
Compatible Insert Size Code 1204
Cutter Style DJ1H
Cutting Direction Right Hand
Insert Holding Method Screw
Lead Angle 90 deg
Rake Negative
Series DJ1H
Overall Height (Inch) 1-3/4
Overall Height (Decimal Inch) 1.7500
Keyway Width (Inch) 3/8
Keyway Width (Decimal Inch) 0.3750
Pitch Type Coarse
Tool Application Facing
Tool Performance General Purpose
Primary Workpiece Material Universal
Primary Workpiece Material Code O
Cutting Edge Length (Decimal Inch) 0.0400
Complete Insert Compatibility SNED1204?
Toolholder Material Steel
Manufacturers Catalog Number DJ1H-30R01
Coolant Through No
Number Of Cutter Inserts 4
Number Of Flutes 12
