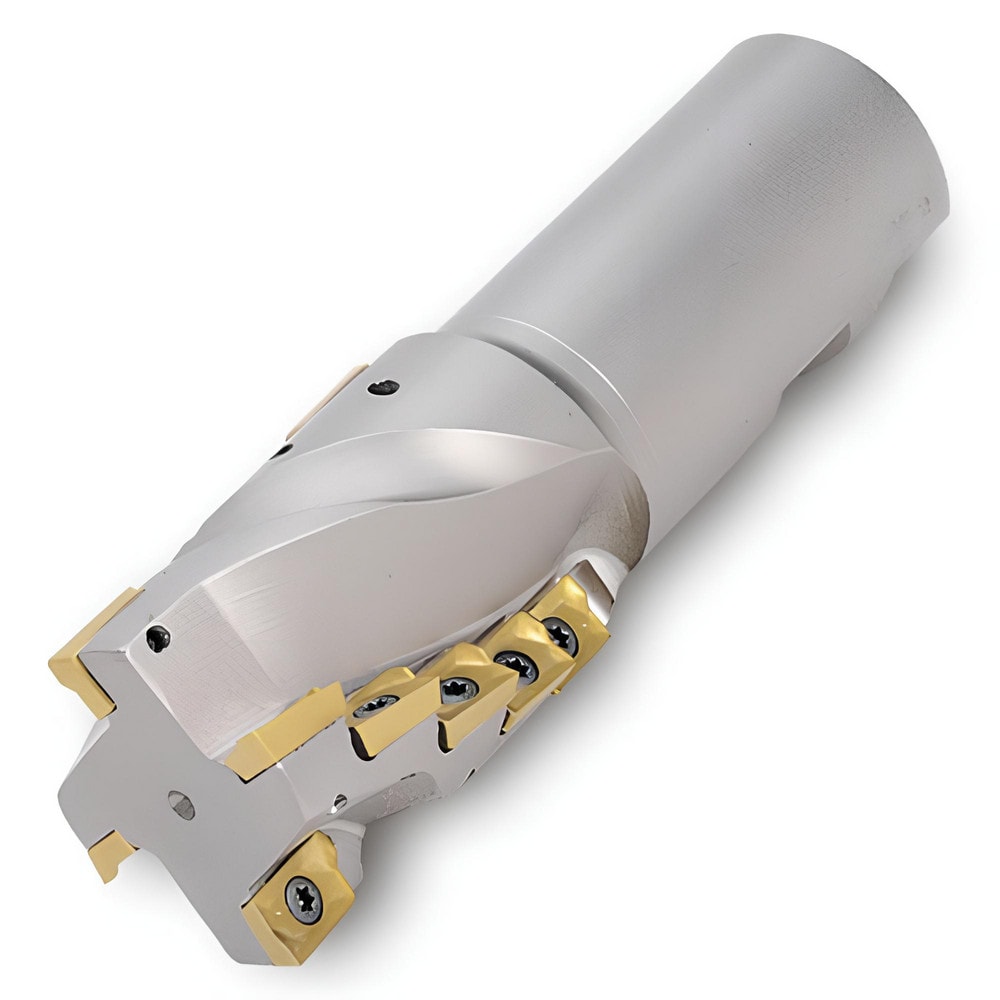

Brand: Ingersoll Cutting Tools / Part #: 3040631
Item #: 83964619
Brand: Ingersoll Cutting Tools
Model #: 3040631
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 2.0000 |
| Minimum Cutting Diameter (Inch) | 2 |
| Maximum Cutting Diameter (Decimal Inch) | 2.0000 |
| Maximum Cutting Diameter (Inch) | 2 |
| Maximum Depth of Cut (Decimal Inch) | 1.7500 |
| Maximum Depth of Cut (Inch) | 1-3/4 |
| Cutter Style | 22J3E |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (Inch) | 1-1/4 |
| Maximum Ramping Angle | 0 ? |
| Insert Holding Method | Screw |
| Overall Length (mm) | 116.3300 |
| Overall Length (Decimal Inch) | 4.5800 |
| Tool Material | Steel |
| Series | 22J3E |
| Flute Type | Spiral |
| Lead Angle | 90 |
| Shank Length (Inch) | 2-1/4 |
| Shank Length (Decimal Inch) | 2.2500 |
| Head Length (Decimal Inch) | 2.3300 |
| Head Length (mm) | 59.18 |
| Tool Application | Facing; Shouldering |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| End Mill Type | Rougher/Finisher |
| Rake | Positive |
| Complete Insert Compatibility | AOMT1805.. |
| Insert Compatibility | AOMT1805.. |
| Hand of Holder | Right Hand |
| Multi-Use Tool | Yes |
| Manufacturers Catalog Number | 22J3E-2002381R01 |
| Usable Length (mm) | 59.180 |
| Number Of Flutes | 3 |
| Usable Length (Decimal Inch) | 2.3300 |
| Number Of Cutter Inserts | 9 |
| Coolant Through | Yes |
