![Brand: Widia / Part #: 3899613](http://indtoolandsupply.com/cdn/shop/files/0292152-21_fee1862c-5ee4-4025-91db-fe29d2d321e7_1024x1024.jpg?v=1703930396)

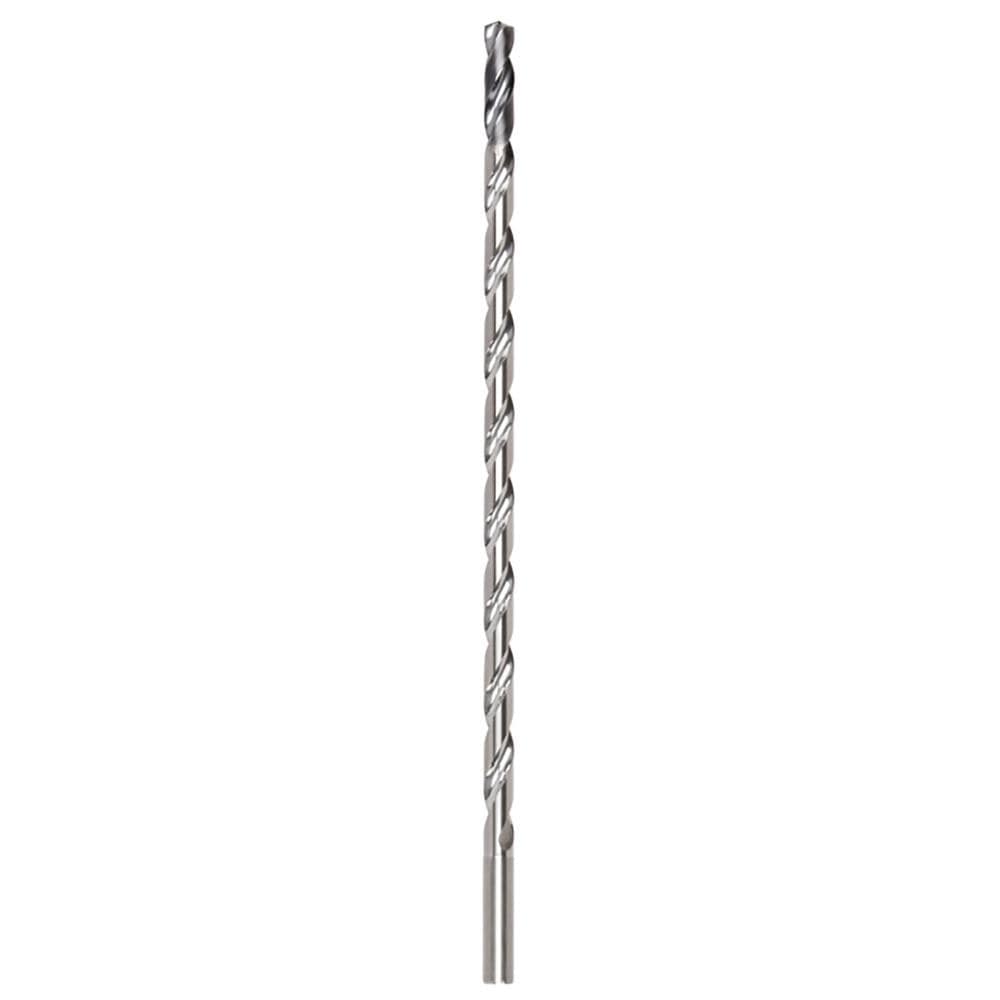

Brand: Widia / Part #: 3899613
Item #: 03565215
Brand: Widia
Model #: 3899613
Product Specifications
Drill Bit Size (mm) | 10.50 |
Overall Length (mm) | 348.0000 |
Flute Length (mm) | 292.00 |
Tool Material | Carbide |
Coating/Finish | TiAlN |
Drill Point Angle | 132 |
Shank Type | Cylindrical |
Coolant Through | Yes |
Flute Type | Helical |
Series | TDD |
Point Type | TDS |
Cutting Direction | Right Hand |
Tool Application | Deep Hole Drilling |
Spiral Type | Regular Spiral |
Drill Bit Diameter Tolerance | m7 |
Number Of Flutes | 2 |
Web Thinning | Web-Thinned |
Primary Workpiece Material | Cast Iron; Steel |
Primary Workpiece Material Code | P; K |
Secondary Workpiece Material | Stainless Steel |
Secondary Workpiece Material Code | M |
Drill Bit Grade | High Performance |
Drill Bit Size (Decimal Inch) | 0.4134 |
Drill Point Length (Decimal Inch) | 0.0875 |
Overall Length (Decimal Inch) | 13.7008 |
Shank Diameter (Decimal Inch) | 0.4331 |
Shank Diameter (mm) | 11.0000 |
Shank Length (Decimal Inch) | 11.0000 |
Shank Length (mm) | 46.000 |
Flute Length (Decimal Inch) | 11.4961 |
Flute By Diameter Ratio | 25xD |
Maximum Drilling Depth (Decimal Inch) | 10.5906 |
Material Grade | WU20PD |
