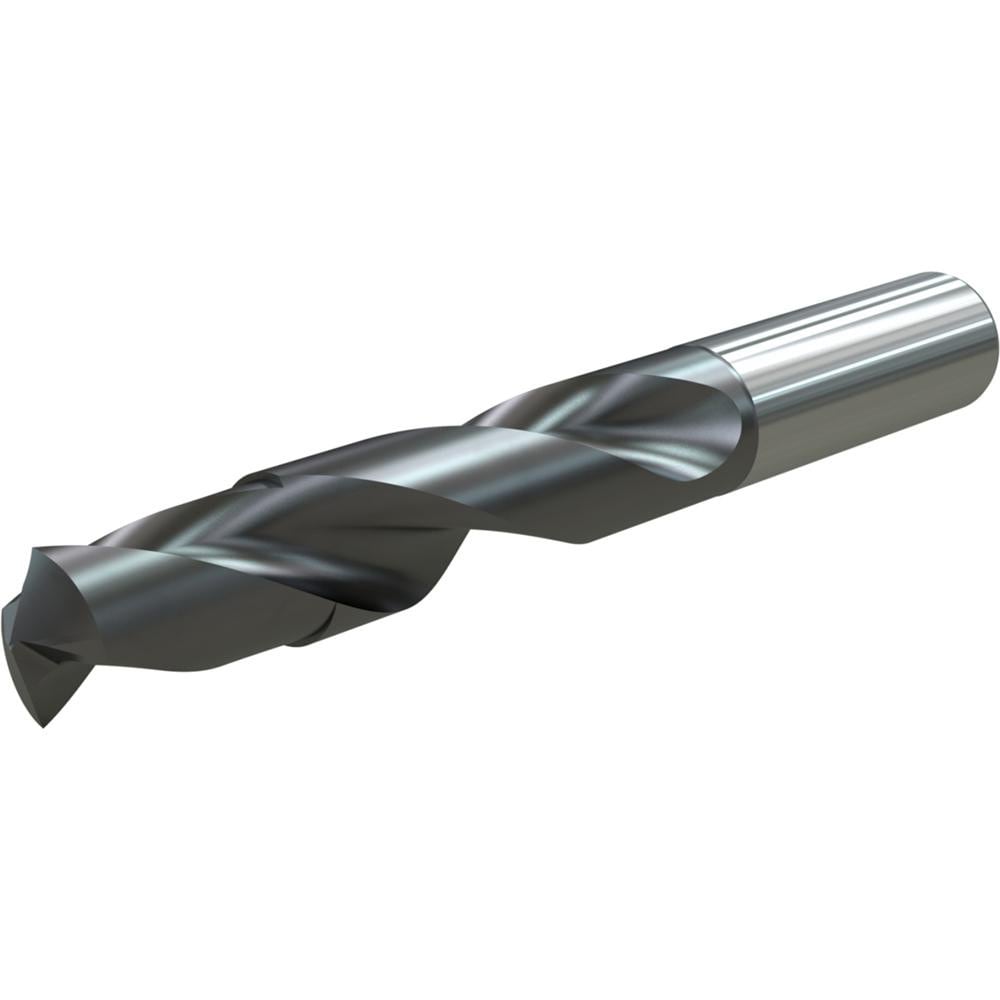

Brand: Widia / Part #: 4143082

Brand: Widia / Part #: 4143082


Item #: 05378864
Brand: Widia
Model #: 4143082

Product Specifications

Drill Bit Size (Decimal Inch) 0.7031
Drill Bit Size (Inch) 45/64
Drill Bit Material Solid Carbide
Cutting Direction Right Hand
Drill Bit Finish/Coating TiAlN
Drill Point Angle (Degrees) 140
Spiral Type Regular
Flute Type Spiral
Point Type Standard
Coolant Through Yes
Shank Type Cylindrical
Number of Flutes 2
Shank Diameter (Decimal Inch) 0.7087
Overall Length (Decimal Inch) 5.6299
Flute Length (Decimal Inch) 3.6614
Series VDS402
Tool Application Drilling
Flute Length x Diamter Ratio 3.5
Flute By Diameter Ratio 3.5xD
Maximum Drilling Depth (Decimal Inch) 2.7953
Shank Length (Decimal Inch) 1.8898
Number of Flats 2
Drill Point Length (Decimal Inch) 0.1220
Drill Bit Diameter Tolerance -0.000700 to 0.000000 in
Tool Performance General Purpose
Double Margin No
Drill Bit Grade WU25PD
Material Grade WU25PD
$403.02
