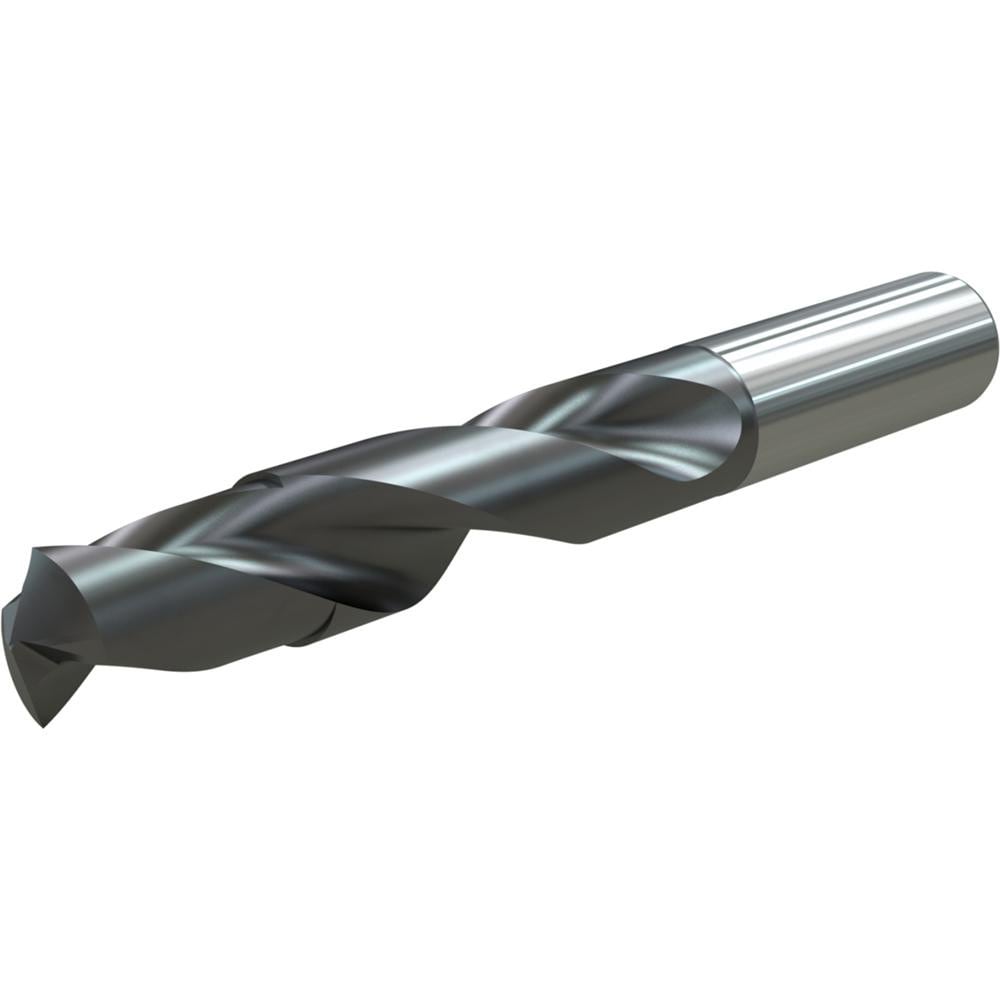

Brand: Widia / Part #: 4143093

Brand: Widia / Part #: 4143093


Item #: 04623815
Brand: Widia
Model #: 4143093

Product Specifications

Drill Bit Size (mm) 17.90
Drill Bit Material Solid Carbide
Cutting Direction Right Hand
Drill Bit Finish/Coating TiAlN
Drill Point Angle (Degrees) 140
Spiral Type Regular
Flute Type Spiral
Point Type Standard
Coolant Through Yes
Shank Type Cylindrical
Number of Flutes 2
Overall Length (mm) 143.0000
Flute Length (mm) 93.00
Series VDS402
Tool Application Drilling
Flute Length x Diamter Ratio 3.5
Flute By Diameter Ratio 3.5xD
Shank Diameter (mm) 18.0000
Maximum Drilling Depth (mm) 71.00
Shank Length (mm) 48.000
Number of Flats 2
Drill Point Length (mm) 3.11
Drill Bit Diameter Tolerance -0.018000 to 0.000000 mm
Tool Performance General Purpose
Double Margin No
Drill Bit Grade WU25PD
Material Grade WU25PD
$403.02
