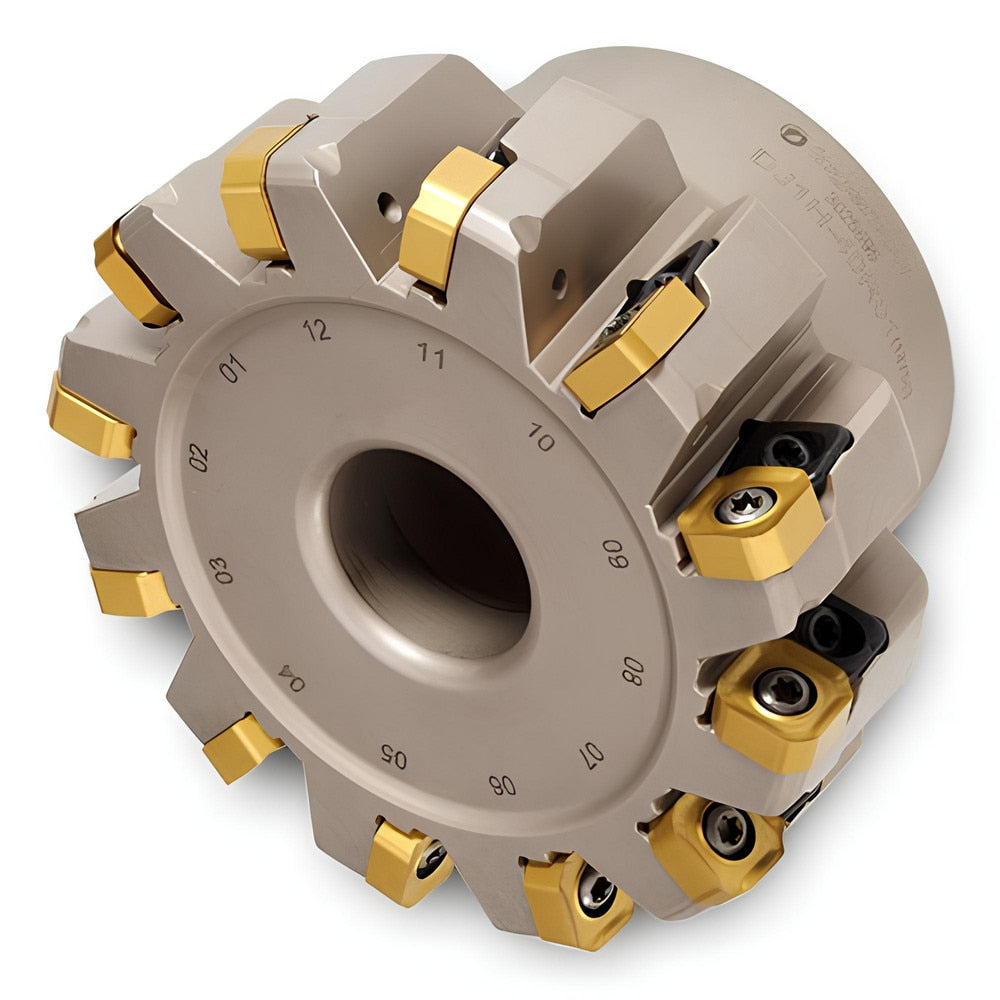

Brand: Ingersoll Cutting Tools / Part #: 3025694
Item #: 96674890
Brand: Ingersoll Cutting Tools
Model #: 3025694
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 3.9370 |
| Minimum Cutting Diameter (Inch) | 3-15/16 |
| Minimum Cutting Diameter (mm) | 100.00 |
| Maximum Cutting Diameter (Inch) | 3-15/16 |
| Maximum Cutting Diameter (Decimal Inch) | 3.9370 |
| Maximum Cutting Diameter (mm) | 100.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0400 |
| Arbor Hole Diameter (Decimal Inch) | 1.2598 |
| Compatible Insert Size Code | 1204 |
| Cutter Style | DJ1H |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 90 deg |
| Rake | Negative |
| Series | DJ1H |
| Overall Height (Mm - 5 Decimals) | 63.00000 |
| Overall Height (Decimal Inch) | 2.4803 |
| Keyway Width (Decimal Inch) | 0.5669 |
| Pitch Type | Close |
| Tool Application | Facing |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | O |
| Cutting Edge Length (Decimal Inch) | 0.0400 |
| Complete Insert Compatibility | SNED1204? |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | DJ1H100R00 |
| Coolant Through | No |
| Number Of Cutter Inserts | 12 |
| Number Of Flutes | 12 |
