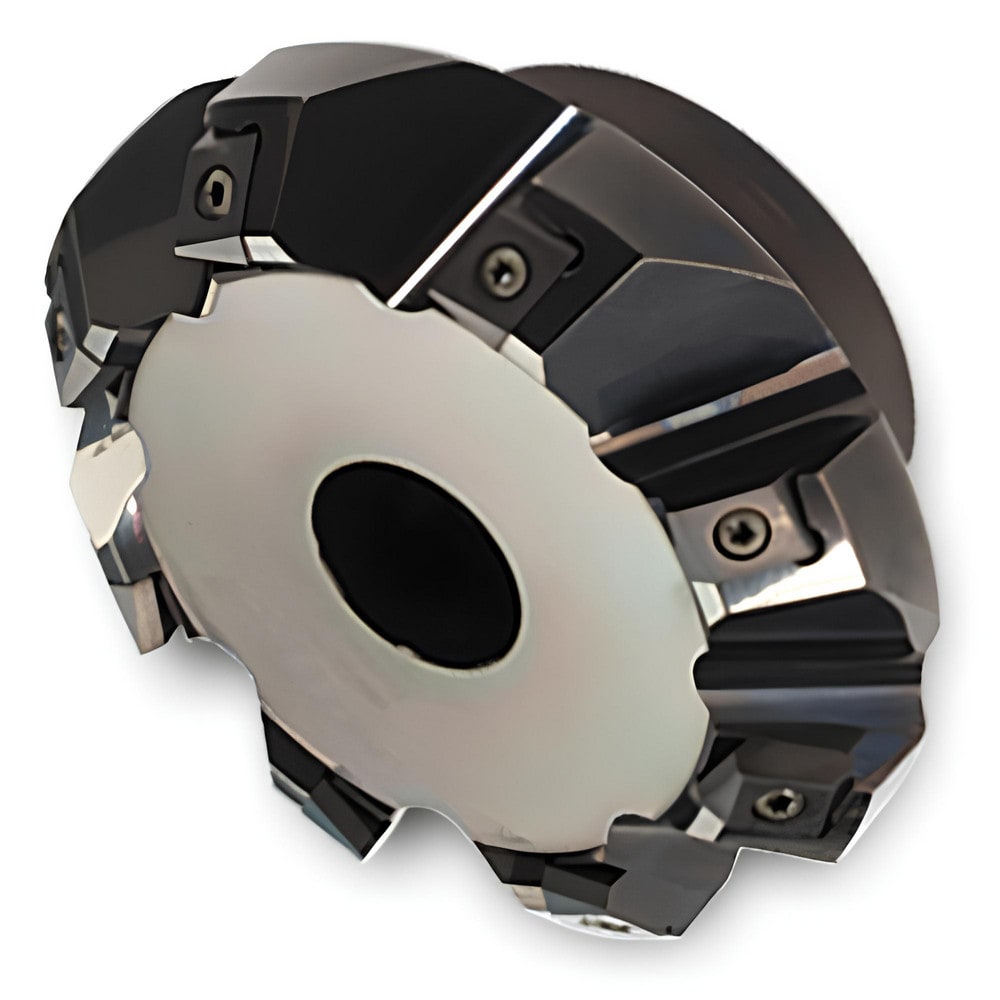

Brand: Ingersoll Cutting Tools / Part #: 2907292
Item #: 13975222
Brand: Ingersoll Cutting Tools
Model #: 2907292
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 2.0000 |
| Minimum Cutting Diameter (Inch) | 2 |
| Maximum Cutting Diameter (Inch) | 2-41/64 |
| Maximum Cutting Diameter (Decimal Inch) | 2.6400 |
| Maximum Depth of Cut (Decimal Inch) | 0.3100 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Arbor Hole Diameter (Inch) | 3/4 |
| Lead Angle | 44.100 |
| Compatible Insert Size Code | 324 |
| Cutter Style | 9N6A |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Rake | Negative |
| Series | 9N6A |
| Keyway Width (Decimal Inch) | 0.3120 |
| Keyway Width (Inch) | 5/16 |
| Overall Height (Inch) | 1-3/4 |
| Overall Height (Decimal Inch) | 1.7500 |
| Maximum Body Diameter (Decimal Inch) | 2.9000 |
| Maximum Body Diameter (mm) | 73.66 |
| Pitch Type | Normal |
| Tool Application | Chamfering; Facing |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Complete Insert Compatibility | LSE324 |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | 9N6A-02R01 |
| Number Of Cutter Inserts | 4 |
| Coolant Through | No |
| Number Of Flutes | 4 |
