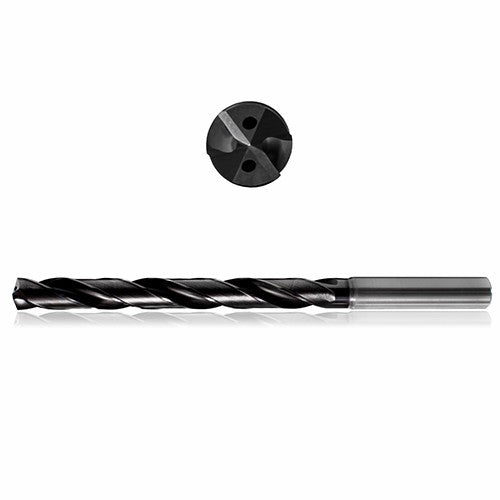

DC 0.689″ x DCONMS 18 mm x LCF 92.96 mm x OAL 143 mm, 5xD, SIG 140ֲ°
Item #: CW8172475
Brand: Precision Cutting Tools
Model #: 9544763
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 0.689″ |
| Shank Standard | h6 |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.689″ |
| Shape | Round |
| Decimal Equivalent | 0.689″ |
| Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 17.5 mm |
| Tool Type | Solid Carbide Drill |
| Length Group | 5xD |
| Flute Type | Helical |
| Coating | TiAICN |
| Grade | H5009 Varianta Supral |
| Applicable Material | | Hi Temp Alloys | Stainless Steel | Steel | |
| Measurement Type | Inch |
| Application | | Drilling | |
| Series/List # | DXC |
| Connection Diameter Machine Side (DCONMS) | 0.7087″ |
| Usable Length (LU) | 2.6279″ |
| Coolant Supply Property (CSP) | Internal |
| Length Chip Flute (LCF) | 3.66″ |
| Point Angle (SIG) | 140 Degrees |
| Overall Length (OAL) | 5.6299″ |
| Flute Helix Angle (FHA) | 30 Degrees |
| Flute Count (NOF) | 2 |
| Number of Teeth | 2 |
| Feature | DOUBLE-MARGIN DRILL |
| Shank Length (LS) | 1.9685″ |
| Cutting Direction (HAND) | Right Hand |
| Shank Type | Round |
| Body Material | Carbide |
