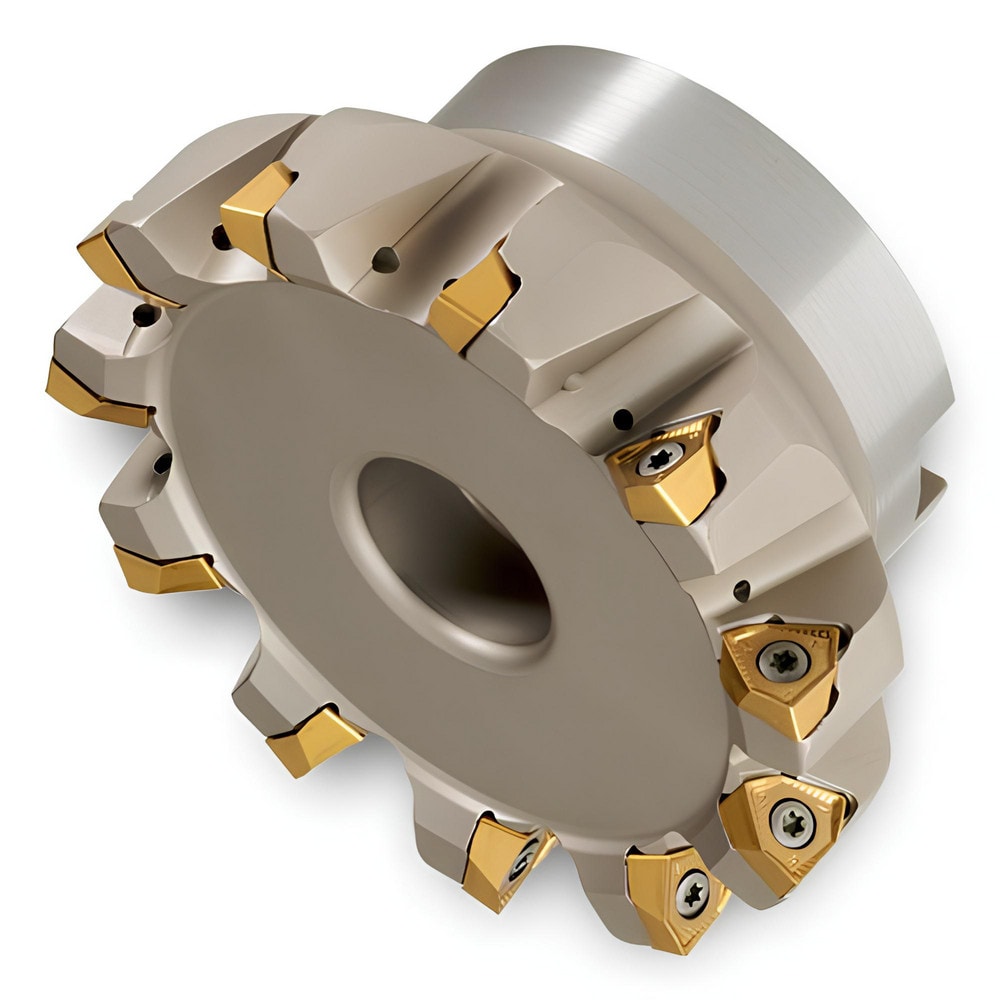

Brand: Ingersoll Cutting Tools / Part #: 3031737

Brand: Ingersoll Cutting Tools / Part #: 3031737


Item #: 95744264
Brand: Ingersoll Cutting Tools
Model #: 3031737

Product Specifications

Minimum Cutting Diameter (Decimal Inch) 2.0000
Minimum Cutting Diameter (Inch) 2
Minimum Cutting Diameter (mm) 50.80
Maximum Cutting Diameter (Inch) 2
Maximum Cutting Diameter (Decimal Inch) 2.0000
Maximum Depth of Cut (Decimal Inch) 0.3620
Arbor Hole Diameter (Inch) 3/4
Arbor Hole Diameter (Decimal Inch) 0.7500
Compatible Insert Size Code 1306
Cutter Style DJ6P
Cutting Direction Right Hand
Insert Holding Method Screw
Lead Angle 90 deg
Rake Positive
Series DJ6P
Overall Height (Decimal Inch) 1.5700
Keyway Width (Inch) 5/16
Keyway Width (Decimal Inch) 0.3120
Pitch Type Normal
Tool Application Facing; Shouldering
Tool Performance General Purpose
Primary Workpiece Material Universal
Primary Workpiece Material Code O
Cutting Edge Length (Decimal Inch) 0.3620
Complete Insert Compatibility WNGU1306?
Toolholder Material Steel
Manufacturers Catalog Number DJ6P-20R01
Coolant Through Yes
Number Of Cutter Inserts 4
Number Of Flutes 12
$501.93
