Brand: Sandvik Coromant / Part #: 8319594

Brand: Sandvik Coromant / Part #: 8319594


Item #: 67619817
Brand: Sandvik Coromant
Model #: 8319594

Product Specifications

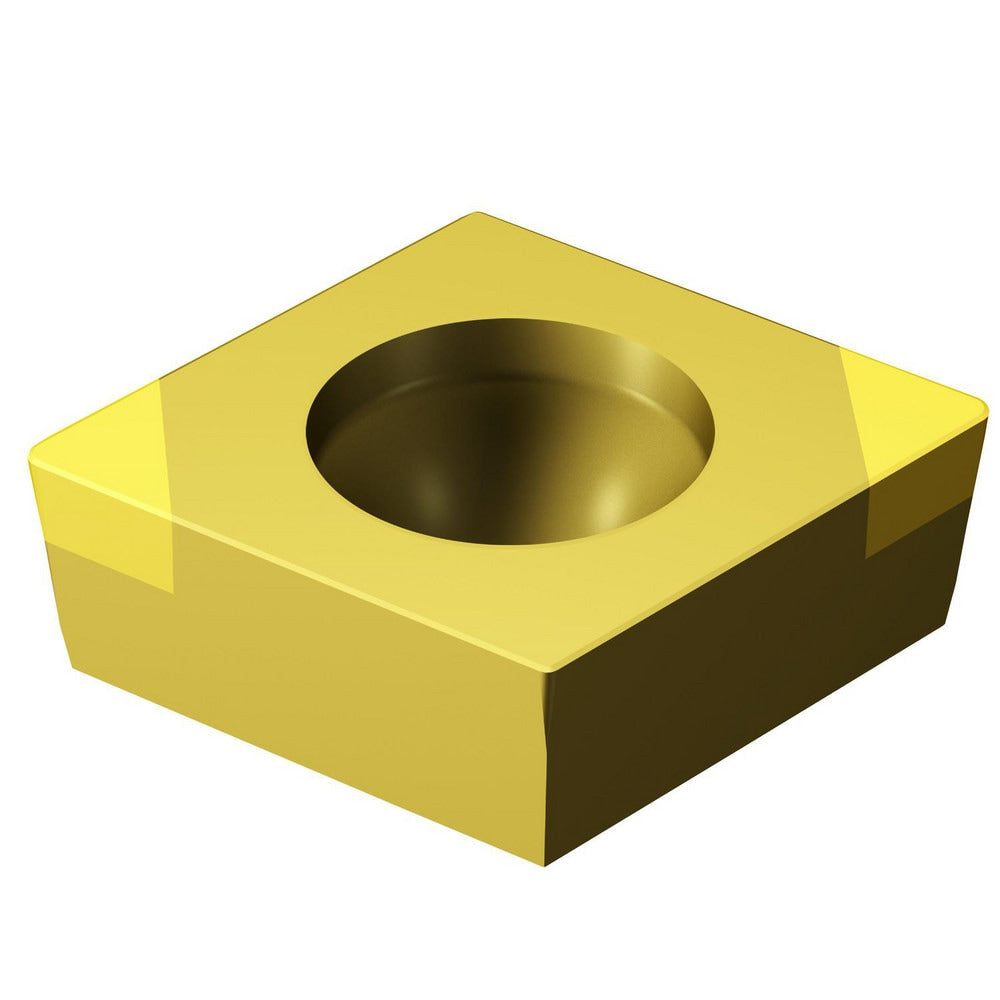

Insert Style CCGW
Insert Shape Code C
Insert Size Code 09T3
Insert Shape Diamond 80?
Coating/Finish TiN
Manufacturer Grade 7115
Corner Radius (mm) 0.40
Corner Radius (Decimal Inch) 0.0157
Insert Material Cubic Boron Nitride
Inscribed Circle (mm) 9.53
Inscribed Circle (Decimal Inch) 0.3750
Insert Holding Method Screw; Clamp
Insert Hand Neutral
Insert Thickness 3.97
Insert Thickness (Decimal Inch) 0.1563
Clearance Code C
Tolerance Code G
Included Angle 84.00
Relief Angle 7.000
Series CoroTurn? 107
Coating Process PVD
Wiper Edge Yes
Number Of Cutting Edges 2
Primary Workpiece Material Hard Material
Primary Workpiece Material Code H
Iso Code CCGW09T304S01520FWG 7115
Manufacturers Catalog Number CCGW09T304S01520FWG 7115
Cutting Direction Neutral
Chip Breaker WG
Cutting Edge Style Negative Land/ER Treated
Width (Decimal Inch - 4 Decimals) 0.3750
Width (Mm - 2 Decimals) 9.53
$82.07
