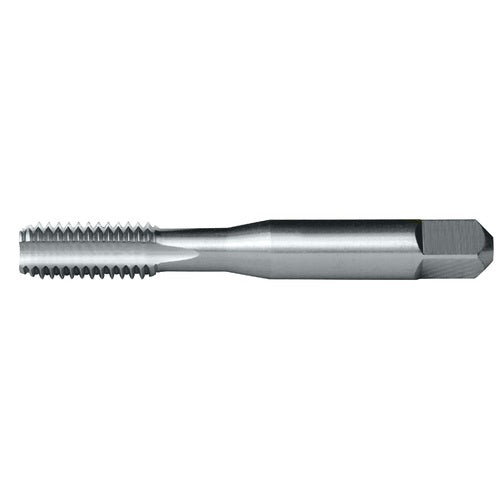

BOTTOM HAND TAP 5/8-18UNF
Item #: CL71C54789
Brand: Cleveland Twist Drill
Model #: C54789
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 5/8″ |
| Tool Type | Hand Tap |
| Threads per Inch (TPI) | 18 |
| Chamfer | Bottoming |
| Thread Standard | NF |
| Coating | Bright |
| Overall Length (OAL) | 3-13/16″ |
| Flute Type | Straight |
| Thread Cutting Part Length (THL) | 1.09″ |
| End Shape | Square |
| Usable Length (LU) | 1-3/32″ |
| Shank Type | Round w/ Drive Square |
| Connection Diameter Machine Side (DCONMS) | 0.48″ |
| Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 |
| Measurement Type | Inch |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Aluminum / Non-Ferrous Materials |
| Series/List # | 1003 |
| Cutting Edge Material | HSS |
| Thread Size | 5/8″ - 18 |
| Thread Tolerance Class (TCTR) | H3 |
