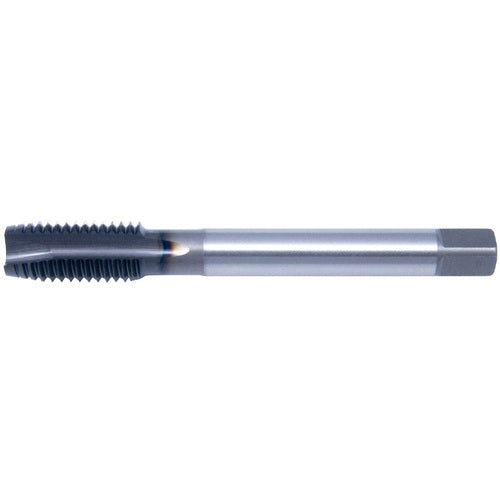

M2.5X.45 HSSE 6H 3FL_PLG
Item #: CD73C96052
Brand: Cleveland
Model #: C96052
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M2.5 |
| Thread Tolerance Class (TCTR) | 6H |
| Thread Pitch (TP) | 0.45 mm |
| Tool Type | Spiral Point Tap |
| Thread Standard | Metric |
| Chamfer | Plug |
| Overall Length (OAL) | 2.205″ |
| Flute Type | Straight |
| Thread Cutting Part Length (THL) | 0.748″ |
| End Shape | Square |
| Usable Length (LU) | 0.748″ |
| Shank Type | Round w/ Drive Square |
| Connection Diameter Machine Side (DCONMS) | 0.141″ |
| Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 3 |
| Measurement Type | Metric |
| Applicable Material | Steel | Stainless Steel | Cast Iron |
| Series/List # | PER-960SP |
| Cutting Edge Material | HSSE |
| Thread Size | M2.5 × 0.45 |
