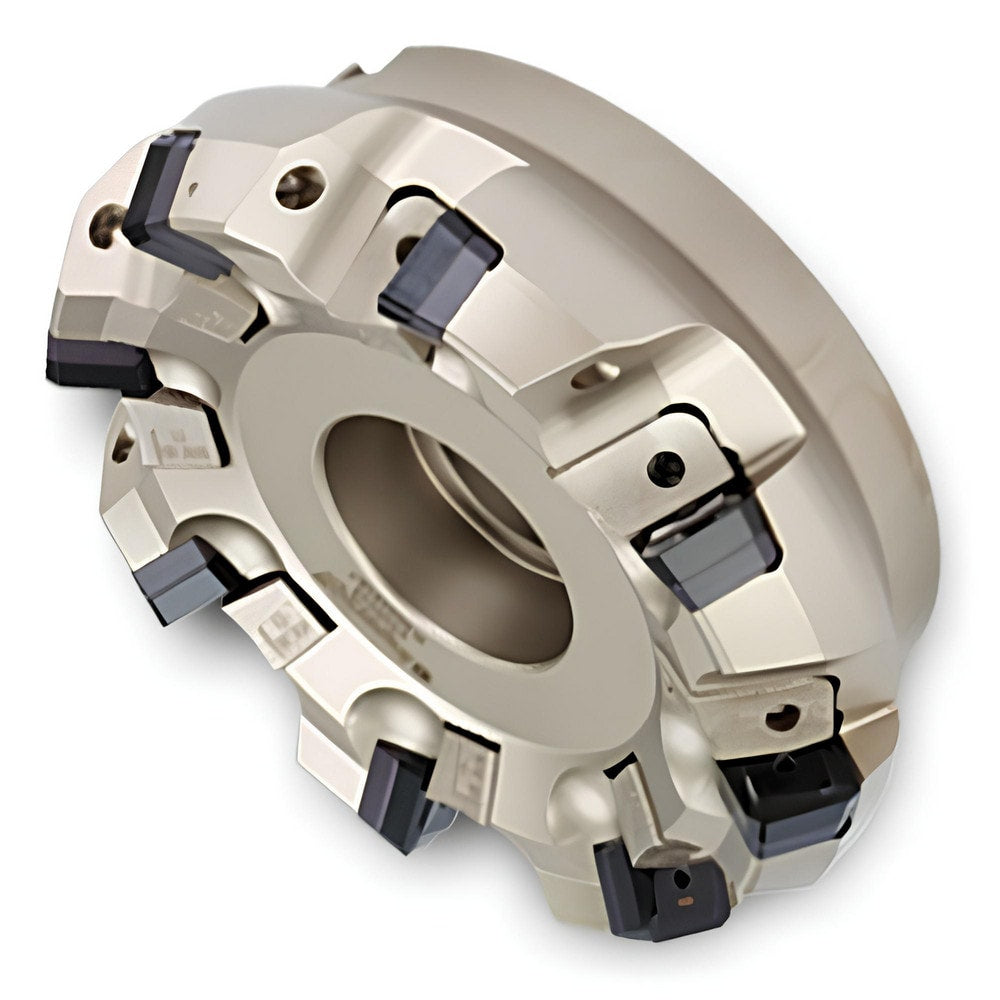

Brand: Ingersoll Cutting Tools / Part #: 2919300
Item #: 96715925
Brand: Ingersoll Cutting Tools
Model #: 2919300
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 6.0000 |
| Minimum Cutting Diameter (Inch) | 6 |
| Maximum Cutting Diameter (mm) | 168.91 |
| Maximum Cutting Diameter (Decimal Inch) | 6.6500 |
| Maximum Depth of Cut (Decimal Inch) | 0.4840 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Arbor Hole Diameter (Inch) | 1-1/2 |
| Lead Angle | 60.000 |
| Compatible Insert Size Code | 2007 |
| Cutter Style | 5C4M |
| Cutting Direction | Right Hand |
| Insert Holding Method | Wedge |
| Rake | Positive |
| Series | 5C4M |
| Keyway Width (Decimal Inch) | 0.6250 |
| Keyway Width (Inch) | 5/8 |
| Overall Height (Inch) | 2-3/8 |
| Overall Height (Decimal Inch) | 2.3750 |
| Pitch Type | Coarse |
| Tool Application | Chamfering; Facing |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Complete Insert Compatibility | SEXN2007 |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | 5C4M-06R01 |
| Number Of Cutter Inserts | 8 |
| Coolant Through | No |
| Number Of Flutes | 8 |
