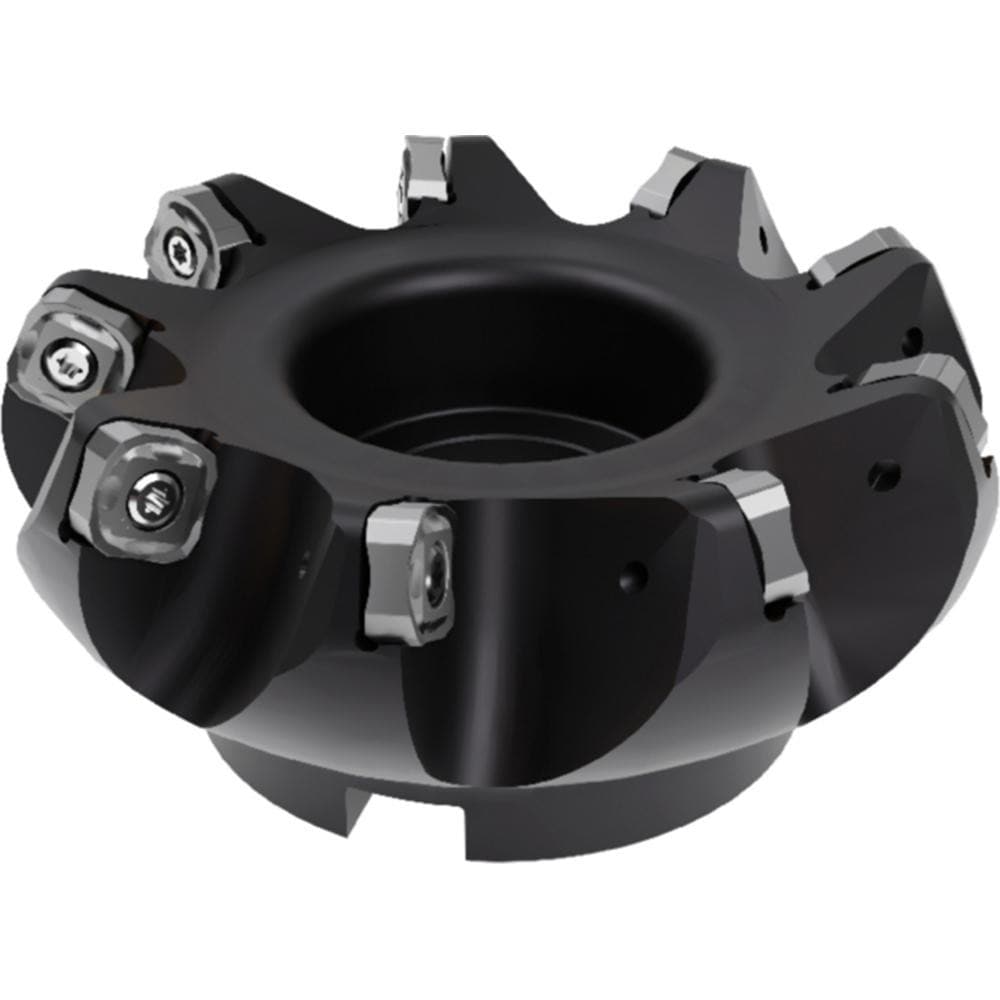

Brand: Widia / Part #: 4073640
Item #: 99560161
Brand: Widia
Model #: 4073640
Product Specifications
| Minimum Cutting Diameter (mm) | 100.00 |
| Maximum Cutting Diameter (mm) | 108.84 |
| Maximum Depth of Cut (mm) | 9.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.2598 |
| Lead Angle | 64.000 |
| Compatible Insert Size Code | 150612 |
| Cutter Style | M8065 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Rake | Negative |
| Series | M8065HD |
| Hub Diameter (mm) | 78.000 |
| Overall Height (Mm - 5 Decimals) | 50.00000 |
| Maximum Body Diameter (Decimal Inch) | 4.4488 |
| Maximum Body Diameter (mm) | 113.00 |
| Tool Application | Chamfering; Facing |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Complete Insert Compatibility | SNMX |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | M8065HD100Z07S32SN15 |
| Number Of Cutter Inserts | 7 |
| Coolant Through | No |
| Number Of Flutes | 7 |
