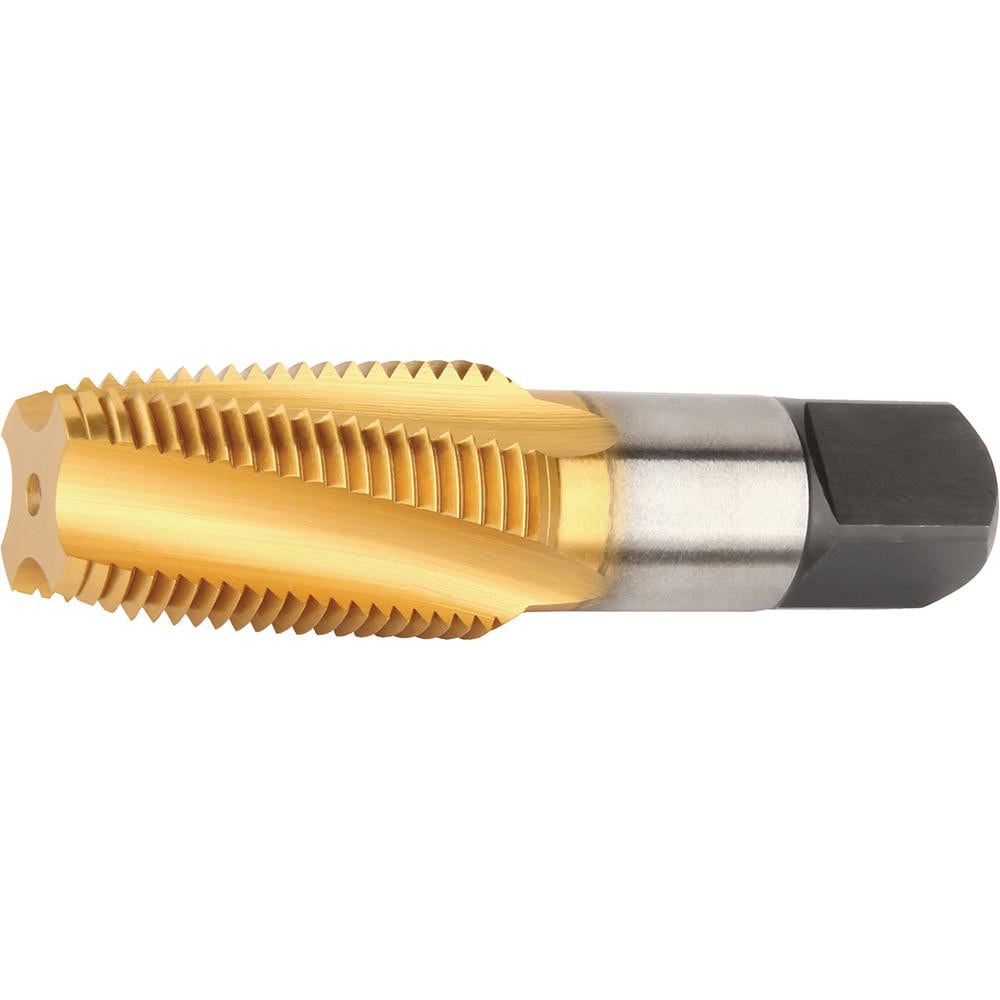

Brand: Widia / Part #: 5629600
Item #: 83144360
Brand: Widia
Model #: 5629600
Product Specifications
Thread Size (Inch) | 1/16-27 |
Overall Length (Decimal Inch) | 2.1300 |
Chamfer | Semi-Bottoming |
Thread Standard | NPT |
Thread Pitch (Decimal Inch) | 0.0370 |
Flute Direction | Right Hand |
Helix Angle | 15 |
Material | High Speed Steel |
Thread Length (Decimal Inch) | 0.6880 |
Thread Depth (Decimal Inch) | 1.0650 |
Shank Diameter (Decimal Inch) | 0.3125 |
Square Length (Decimal Inch) | 0.3750 |
Square Size (Decimal Inch) | 0.2000 |
Projection (Decimal Inch) | 1.0650 |
Application | Tapping |
Material Application | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
Series | VTSFT |
Threads per Inch | 27.0 |
Coating/Finish | TiN |
Number Of Flutes | 4 |
