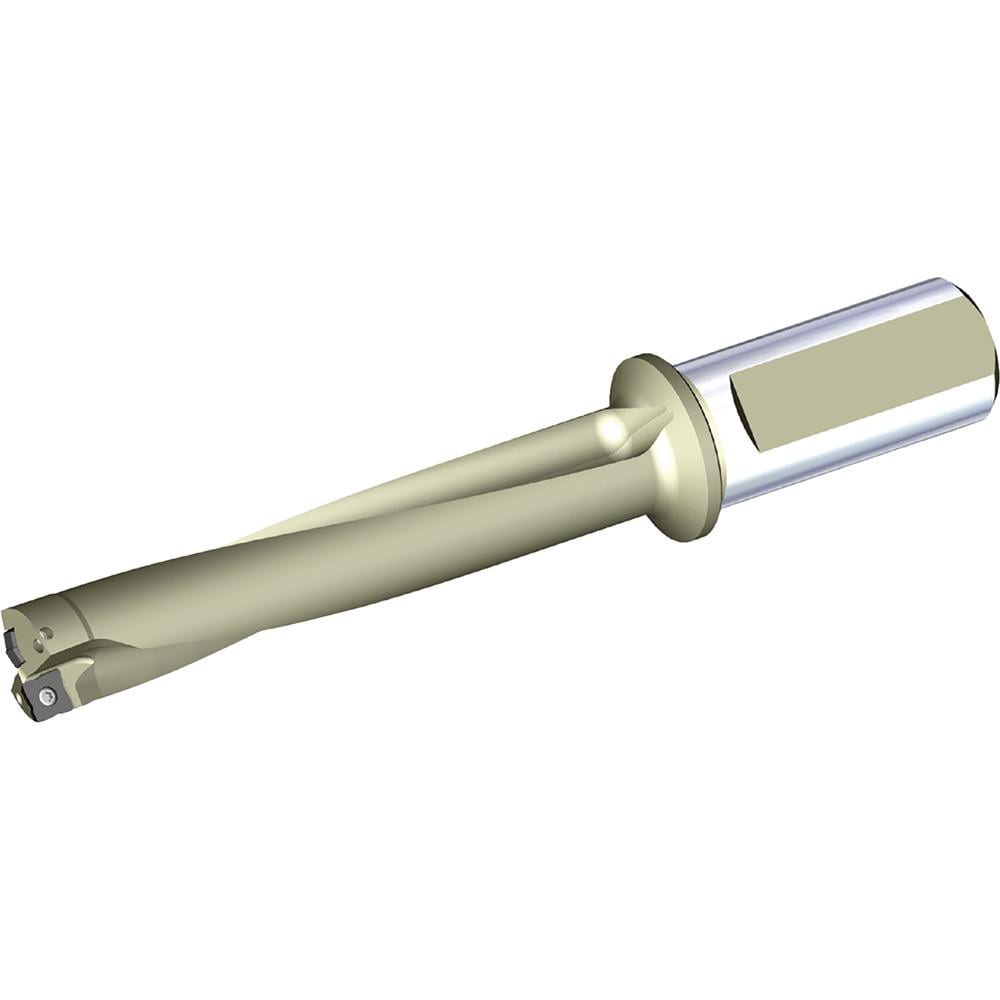

Brand: Widia / Part #: 5538687
Item #: 97072920
Brand: Widia
Model #: 5538687
Product Specifications
| Maximum Drill Depth | 12.8850 in |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Depth of Cut (mm) | 327.28 |
| Shank Type | Weldon Flat |
| Shank Diameter (mm) | 40.0000 |
| Shank Diameter (Decimal Inch) | 1.5748 |
| Cutting Direction | Right Hand |
| Drill Body Length to Flange (mm) | 377.00 |
| Toolholder Style | TCF |
| Nose Diameter (Mm) ( - 2 Decimals) | 65.00 |
| Overall Length (mm) | 449.2800 |
| Overall Length | 449.28 |
| Through Coolant | Yes |
| Series | Top Cut 4 |
| Flute Length (mm) | 372.80 |
| Shank Length (mm) | 70.000 |
| Gage Length (mm) | 379.28 |
| Primary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M; N |
| Number of Shank Flats | 1 |
| Flute Type | Variable Index |
| Maximum Cutting Diameter (mm) | 65.00 |
| Projection (mm) | 379.280 |
| Number Of Flutes | 2 |
| Coolant Through | Yes |
