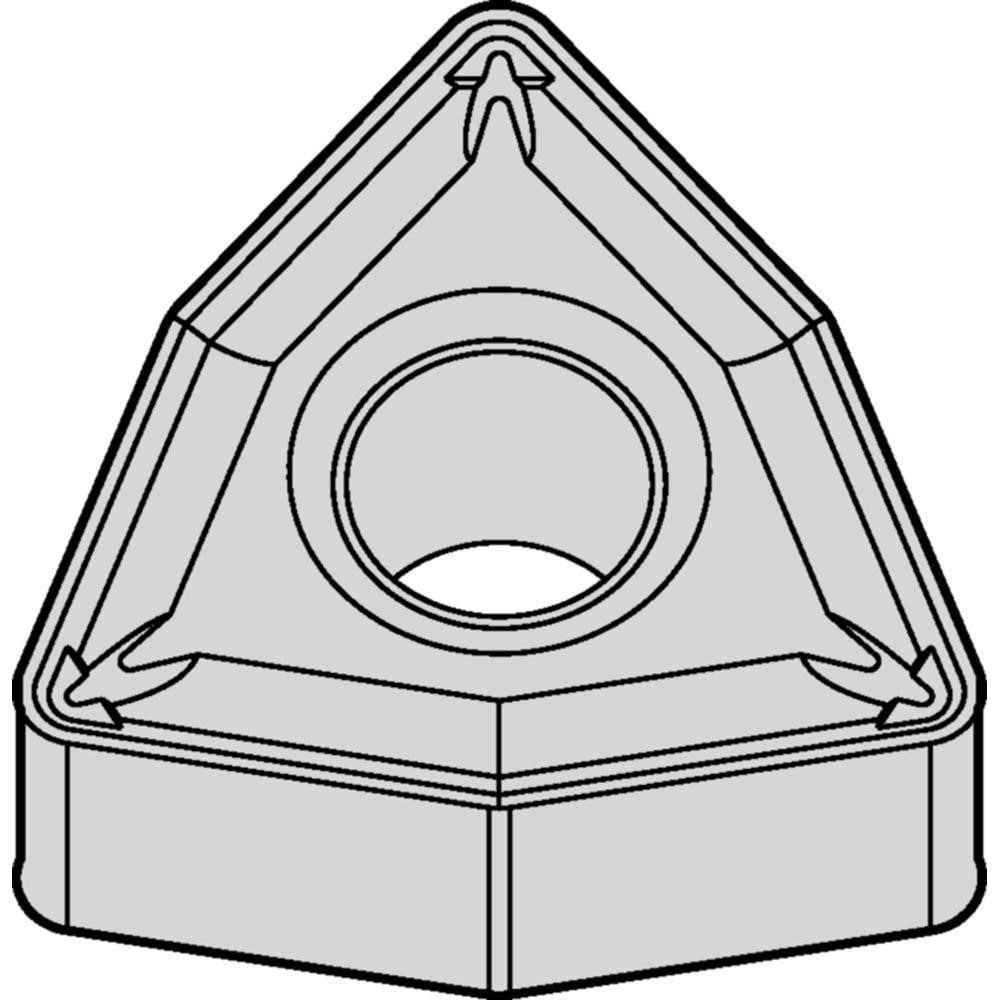

Brand: Widia / Part #: 4166299

Brand: Widia / Part #: 4166299


Item #: 95148995
Brand: Widia
Model #: 4166299

Product Specifications

Insert Style WNMG
Insert Shape Code W
Insert Size Code 431
Insert Shape Trigon
Coating/Finish TiN; TiAlN
Manufacturer Grade TN10U
Corner Radius (Decimal Inch) 0.0157
Insert Material Carbide
Hole Diameter (Decimal Inch) 0.2031
Maximum Depth of Cut (Decimal Inch) 0.1710
Inscribed Circle (Decimal Inch) 0.5000
Insert Holding Method Clamp
Insert Hand Neutral
Insert Thickness (Decimal Inch) 0.1875
Clearance Code N
Tolerance Code M
Included Angle 80.00
Relief Angle 0.000
Series WNMG
Coating Process PVD
Rake Negative
Wiper Edge No
Insert Length (Decimal Inch) 0.3420
Number Of Cutting Edges 6
Primary Workpiece Material Stainless Steel; Super-alloys & Titanium
Primary Workpiece Material Code S; M
Secondary Workpiece Material Steel
Secondary Workpiece Material Code P
Ansi Code WNMG4312P
Iso Code WNMG0804042P
Manufacturers Catalog Number WNMG4312P
Cutting Direction Neutral
Coating Classification PVD
Chip Breaker 2P
Style WNMG
Width (Decimal Inch - 4 Decimals) 0.5000
Multi-Use Tool Yes
Full Radius No
Multi-Use Application External Turning; Internal Turning
$9.15
