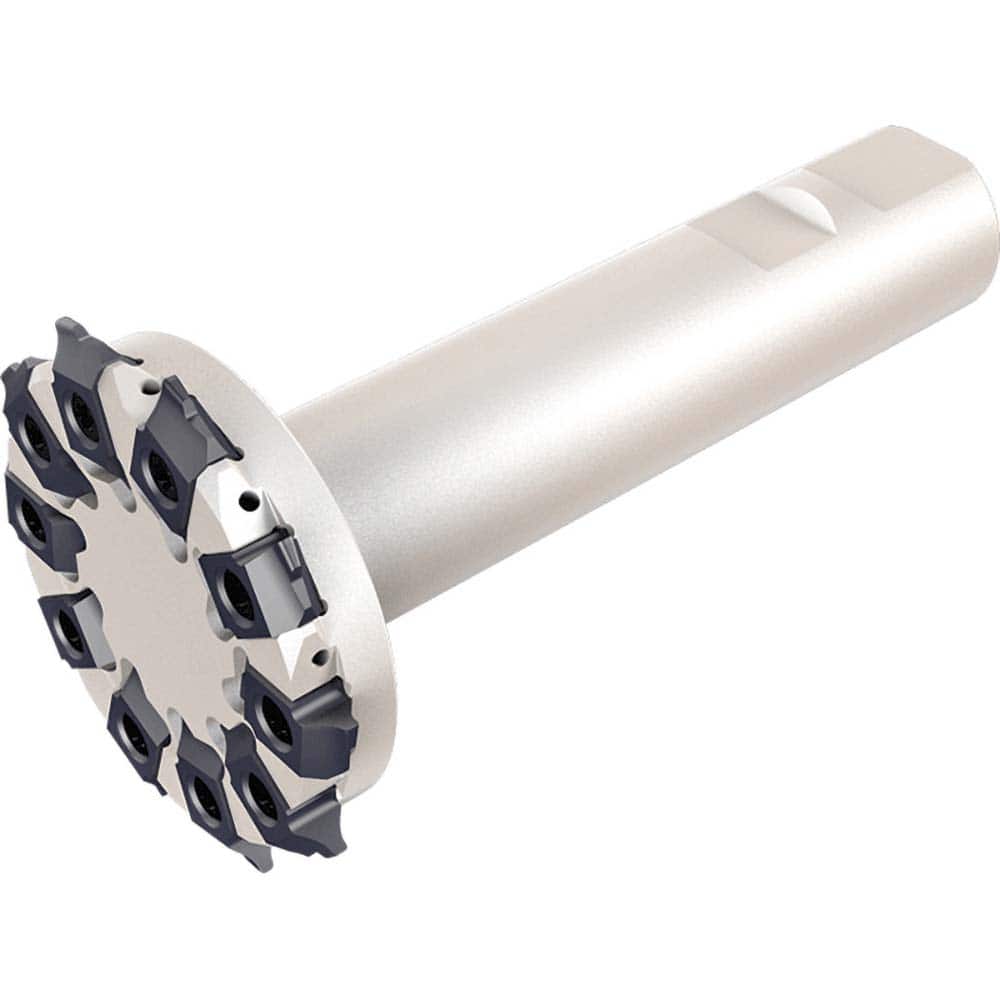

Iscar - Indexable Slotting Cutters Connection Type: E25 Cutting Width (Decimal Inch): 0.2360
Item #: 11754686
Brand: Iscar
Model #: 3107239
Product Specifications
Indexable Slotting Cutters; Connection Type: E25 ; Cutting Width (Decimal Inch): 0.2360 ; Maximum Depth of Cut (Decimal Inch): 0.1570 ; Cutter Diameter (mm): 63.00 ; Cutter Diameter (Decimal Inch): 2.4800 ; Shank Diameter (Inch): 1
| Connection Type | E25 |
| Cutting Width (Decimal Inch) | 0.2360 |
| Maximum Depth of Cut (Decimal Inch) | 0.1570 |
| Cutter Diameter (mm) | 63.00 |
| Cutter Diameter (Decimal Inch) | 2.4800 |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1 |
| Modular Connection Size | E25 |
| Number of Teeth | 10 |
| Series | LNET 18 |
| Insert Style | MODUGEAR |
| Staggered Tooth | No |
| Number of Cutter Inserts | 10 |
| Cutting Direction | Right or Left Hand |
| Cutting Direction | Right or Left Hand |
| Insert Holding Method | Screw Clamp |
| Insert Holding Method | Screw Clamp |
| Minimum Cutting Width (Decimal Inch) | 0.2360 |
| Maximum Body Diameter (Decimal Inch) | 2.4800 |
| Weldon Flat | Yes |
| Through Coolant | Coolant Through |
