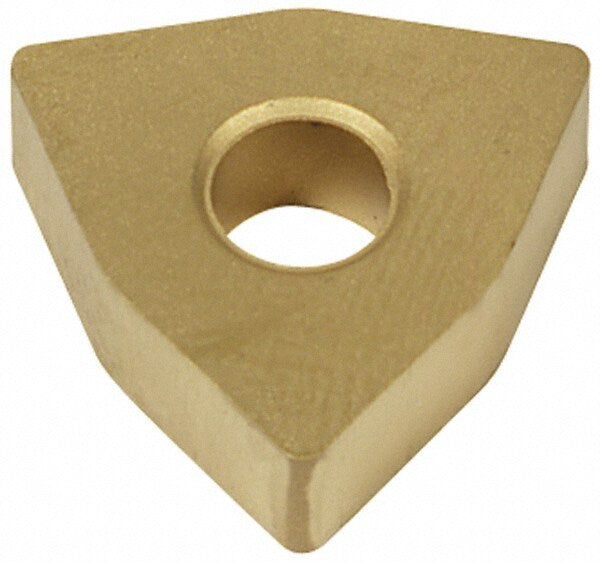

Brand: Tungaloy / Part #: 6809588
Item #: 01684125
Brand: Tungaloy
Model #: 6809588
Product Specifications
| Insert Style | WNMA |
| Insert Shape Code | W |
| Insert Size Code | 432 |
| Insert Shape | Trigon |
| Coating/Finish | Uncoated |
| Manufacturer Grade | FX105 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Insert Material | Ceramic |
| Hole Diameter (Decimal Inch) | 0.2030 |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Holding Method | Pin; Clamp |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Clearance Code | N |
| Tolerance Code | M |
| Included Angle | 80.0 |
| Relief Angle | 0 |
| Series | WNMA |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.3430 |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Iso Code | WNMA432 |
| Standards | ISO |
| Material Grade | C3; C4; C2 |
| Chip Breaker | A |
