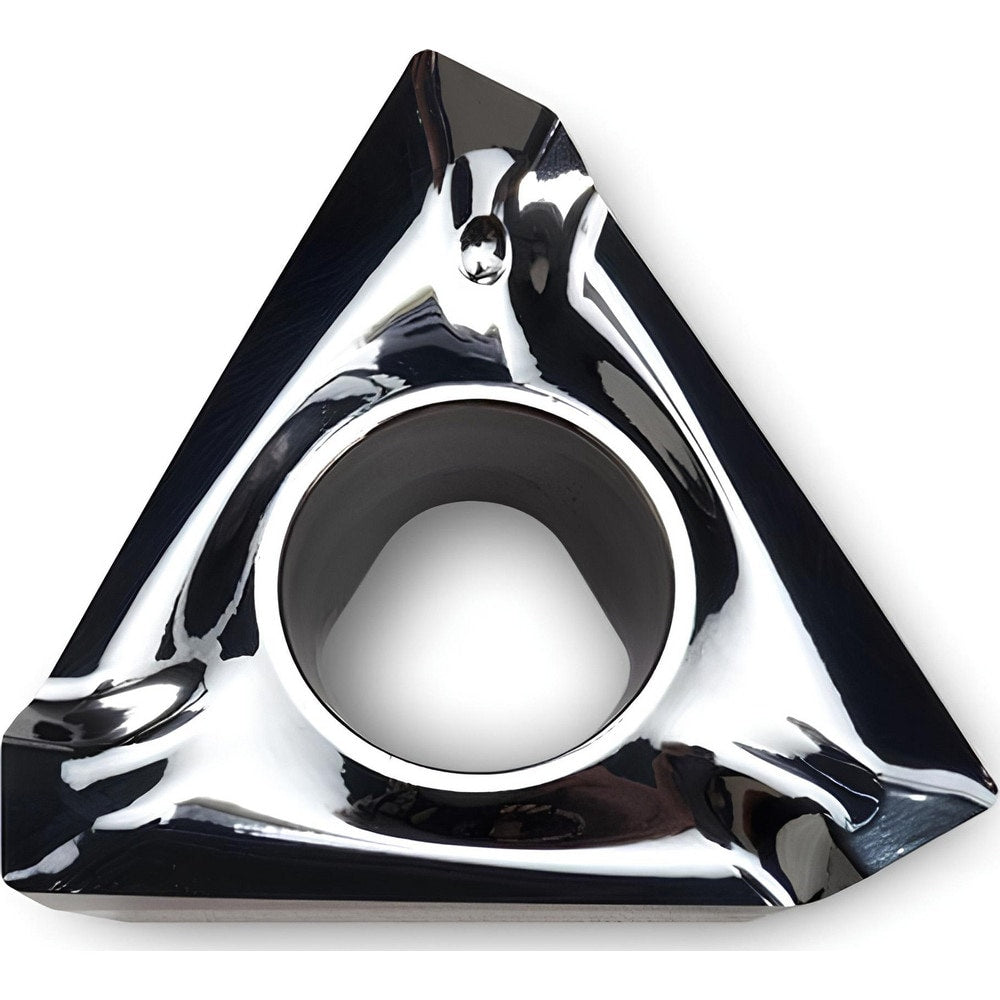

Brand: Ingersoll Cutting Tools / Part #: 5615738
Item #: 12303517
Brand: Ingersoll Cutting Tools
Model #: 5615738
Product Specifications
| Insert Style | THES |
| Insert Size Code | 130604 |
| Insert Material | Carbide |
| Manufacturer Grade | IN10K |
| Inscribed Circle (Inch) | 17/32 |
| Corner Radius (Inch) | 1/64 |
| Insert Hand | Right Hand |
| Series | THES |
| Coating Process | Uncoated |
| Maximum Depth of Cut (Decimal Inch) | 0.5900 |
| Number Of Cutting Edges | 3 |
| Insert Shape | Triangle |
| Rake | Positive |
| Primary Workpiece Material | Non-Ferrous Metal; Cast Iron |
| Primary Workpiece Material Code | K; N |
| Ansi Code | THES130604FR-P |
| Manufacturers Catalog Number | THES130604FR-P IN10K |
| Cutter Series Compatibility | KJ5P; 1KJ1P |
| Chip Breaker | P |
| Cutting Direction | Right Hand |
| Shape | Triangle |
| Length of Cut (mm) | 14.9900 |
| Insert Holding Method | Screw |
| Coating Classification | Uncoated |
| Single or Double Sided Insert | Single |
| Coating/Finish | Uncoated |
| Included Angle Degree | 60 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2360 |
| Multi-Use Tool | No |
