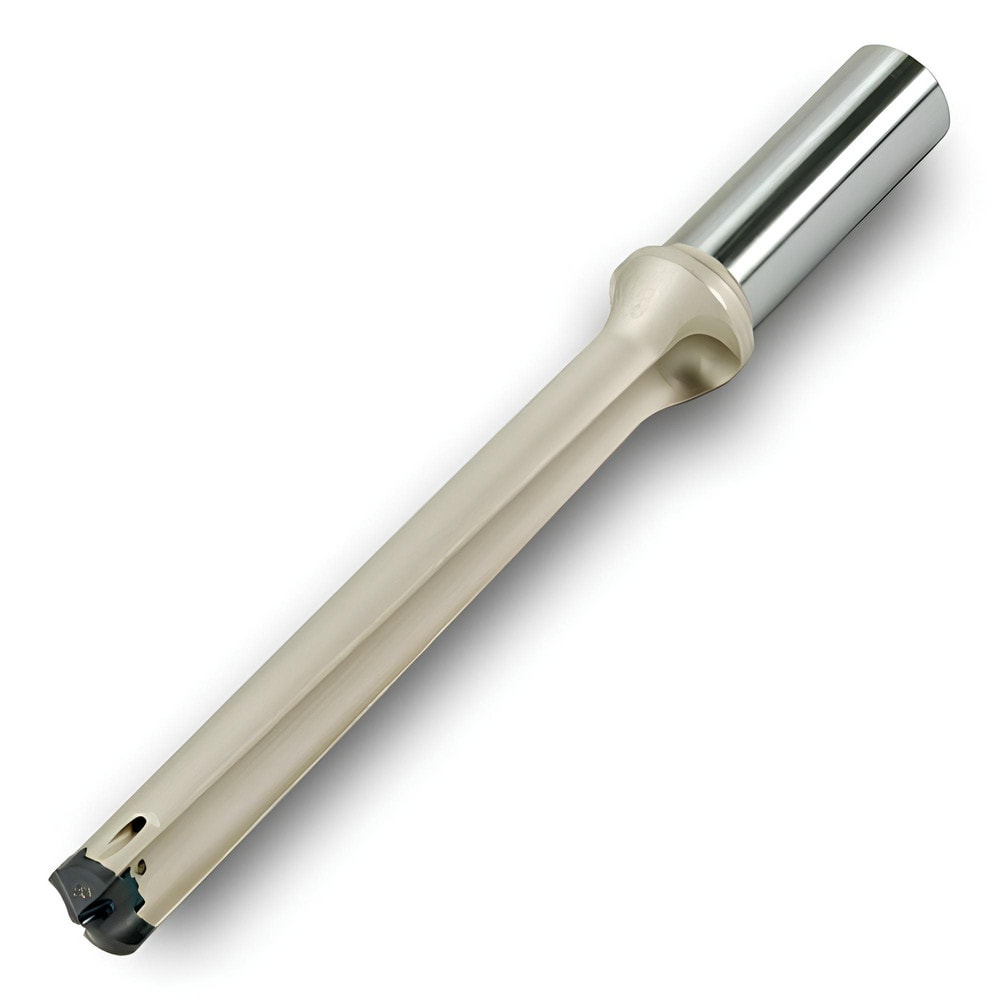

Brand: Ingersoll Cutting Tools / Part #: 3211142
Item #: 98827447
Brand: Ingersoll Cutting Tools
Model #: 3211142
Product Specifications
| Minimum Drill Diameter (Decimal Inch) | 0.4724 |
| Maximum Drill Diameter (Decimal Inch) | 0.5079 |
| Drill Depth by Diameter Ratio | 8xD |
| Maximum Drill Depth (Decimal Inch) | 3.7800 |
| Shank Type | Weldon Flat |
| Insert Style | YBB; YAB |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Insert Seat Size | 12 |
| Tool Material | Steel |
| Compatible Insert Style | YBB; YAB |
| Compatible Insert Size Code | 12.. |
| Overall Length (Decimal Inch) | 6.3100 |
| Series | YD |
| Toolholder Style | YD |
| Flute Length (Decimal Inch) | 4.4200 |
| Body Length (Decimal Inch) | 4.4200 |
| Shank Length (Decimal Inch) | 1.8900 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
