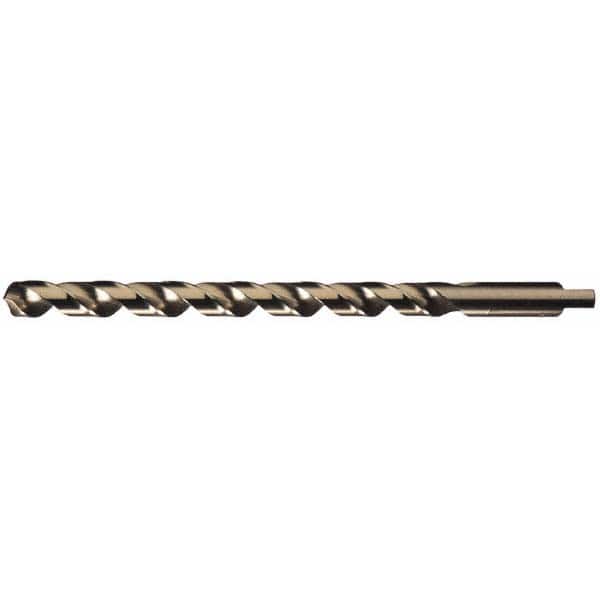

Cleveland - 31/64" 118° Spiral Flute Cobalt Taper Length Drill Bit
Item #: 01957521
Brand: Cleveland
Model #: C15042
Features and Benefits
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Oxide gold finish provides a polished finish and prevents chip building, galling and welding on a workpiece. It is commonly used on low carbon, stainless steel and ferrous metals.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Drill Bit Size (Inch) | 31/64 |
| Drill Bit Size (Decimal Inch) | 0.4844 |
| Drill Point Angle | 118 |
| Drill Bit Material | Cobalt |
| Drill Bit Finish/Coating | Oxide/Gold |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Tanged |
| Through Coolant | No |
| Point Type | Notched |
| Flute Length (Inch) | 5-3/4 |
| Flute Length (Decimal Inch) | 5.7500 |
| Flute Length (mm) | 146.05 |
| Overall Length (Inch) | 7-3/4 |
| Overall Length (mm) | 196.85 |
| Overall Length (Decimal Inch) | 7.7500 |
| Spiral Type | Regular Spiral |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (Decimal Inch) | +0.0000 to -0.0010 |
| Web Thinning | Web-Thinned |
| Material Grade | M42 |
| Series/List | 2513 |
