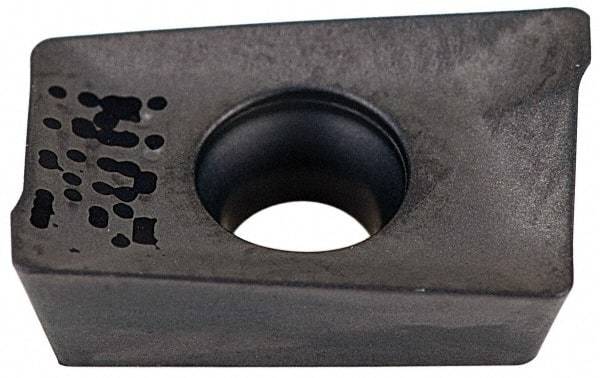

Iscar - APKT1003 HM Grade IC30N Cermet Milling Insert - Uncoated, 0.1398" Thick, 0.5mm Corner Radius
Item #: 98676539
Brand: Iscar
Model #: 5600507
Exact Tooling IR#: 04
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | APKT |
| Insert Size | 1003 |
| Material | Cermet |
| Material Grade | C6/C7 |
| Manufacturer's Grade | IC30N |
| Coating | Uncoated |
| Width (Decimal Inch) | 0.2638 |
| Length (Decimal Inch) | 0.3957 |
| Thickness (Decimal Inch) | 0.1398 |
| Corner Radius (Decimal Inch) | 0.0197 |
| Corner Radius (mm) | 0.50 |
| Relief Angle | 11.000 |
| Included Angle | 85 |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Chipbreaker | HM |
| ISO Number | APKT 1003PDR-HM |
